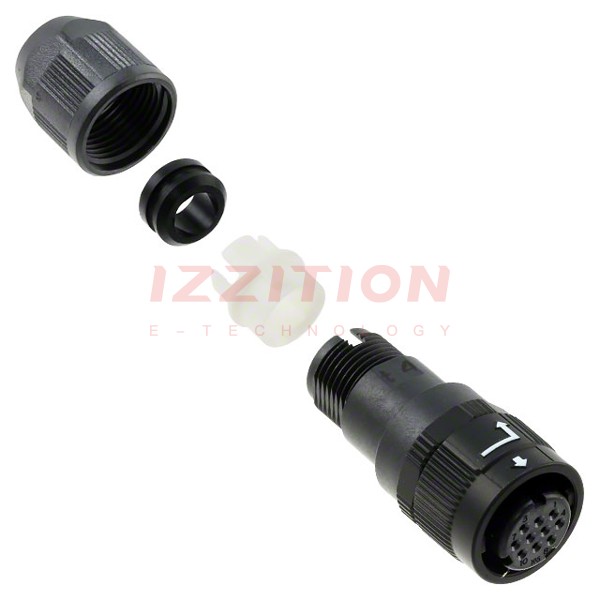

| Part Number | HR34B-12WPD-10S | HR34B-12WPK-10S | HR34B-12WPE-10S | HR34B-12WLPD-10S |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active |
| Connector Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 10 (Power) | 10 (Power) | 10 (Power) | 10 (Power) |
| Shell Size - Insert | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | N (Normal) | N (Normal) | N (Normal) | N (Normal) |
| Primary Material | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Chrome | Chrome | Chrome | Chrome |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Color | Black | Black | Black | Black |
| Ingress Protection | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Coupling Nut, Strain Relief | Backshell, Coupling Nut, Strain Relief | Backshell, Coupling Nut, Strain Relief | Backshell, Coupling Nut, Rotatable, Strain Relief |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 3A | 3A | 3A | 3A |
| Voltage Rating | 200VAC, 250VDC | 200VAC, 250VDC | 200VAC, 250VDC | 200VAC, 250VDC |
| Cable Opening | 0.224" ~ 0.256" (5.70mm ~ 6.50mm) | 0.315" ~ 0.354" (8.00mm ~ 9.00mm) | 0.256" ~ 0.287" (6.50mm ~ 7.30mm) | 0.224" ~ 0.256" (5.70mm ~ 6.50mm) |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
