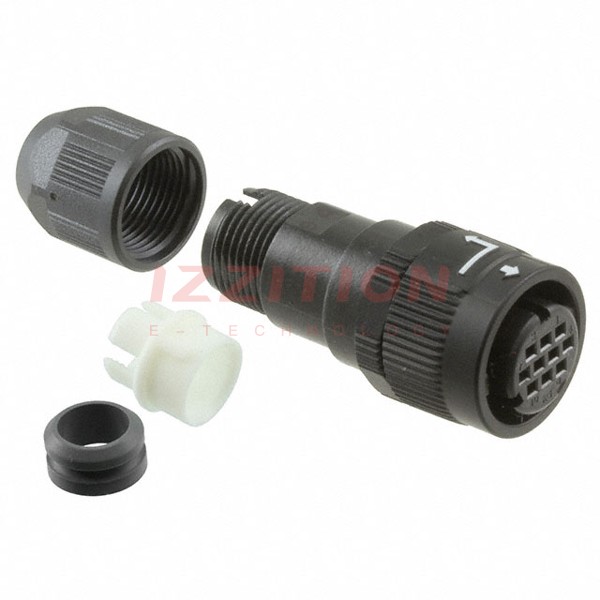

| Part Number | HR34B-12WPB-10SC | HR34B-12WPD-10SC | HR34B-12WPE-10SC | HR34B-12WLPB-10SC | HR34B-12WPA-10SC |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Plug Housing | Plug Housing | Plug Housing | Plug Housing | Plug Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets |
| Number of Positions | 10 | 10 | 10 | 10 | 10 |
| Shell Size - Insert | 12 | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | N (Normal) | N (Normal) | N (Normal) | N (Normal) | N (Normal) |
| Primary Material | - | - | - | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Chrome | Chrome | Chrome | Chrome | Chrome |
| Housing Color | Black | Black | Black | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Coupling Nut, Strain Relief | Backshell, Coupling Nut, Strain Relief | Backshell, Coupling Nut, Strain Relief | Backshell, Coupling Nut, Rotatable, Strain Relief | Backshell, Coupling Nut, Strain Relief |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
