HR34B-12WLPD-10S
  • Share:

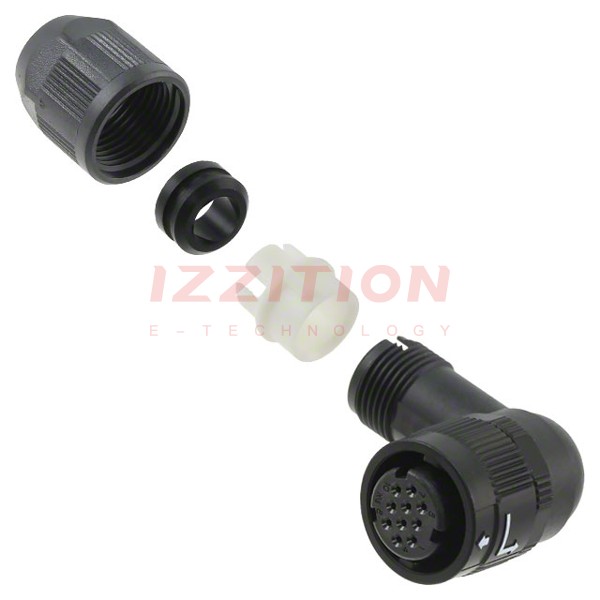

Hirose Electric Co Ltd HR34B-12WLPD-10S

Manufacturer No:
HR34B-12WLPD-10S
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HR34B-12WLPD-10S Datasheet
ECAD Model:
-
Description:
CONN PLUG FMALE 10P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Female Sockets
Number of Positions:10 (Power)
Shell Size - Insert:12
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line), Right Angle
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Bayonet Lock
Orientation:N (Normal)
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Chrome
Contact Finish - Mating:Gold
Color:Black
Ingress Protection:IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell, Coupling Nut, Rotatable, Strain Relief
Shielding:Unshielded
Current Rating (Amps):3A
Voltage Rating:200VAC, 250VDC
Cable Opening:0.224" ~ 0.256" (5.70mm ~ 6.50mm)
Operating Temperature:-25°C ~ 125°C
0 Remaining View Similar

In Stock

$21.25
20

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR34B-12WLPD-10S HR34B-12WPD-10S   HR34B-12WLPE-10S   HR34B-12WLPK-10S
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active
Connector Type Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets
Number of Positions 10 (Power) 10 (Power) 10 (Power) 10 (Power)
Shell Size - Insert 12 12 12 12
Shell Size, MIL - - - -
Mounting Type Free Hanging (In-Line), Right Angle Free Hanging (In-Line) Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle
Mounting Feature - - - -
Termination Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Bayonet Lock Bayonet Lock Bayonet Lock Bayonet Lock
Orientation N (Normal) N (Normal) N (Normal) N (Normal)
Primary Material Metal Metal Metal Metal
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Chrome Chrome Chrome Chrome
Contact Finish - Mating Gold Gold Gold Gold
Color Black Black Black Black
Ingress Protection IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Coupling Nut, Rotatable, Strain Relief Backshell, Coupling Nut, Strain Relief Backshell, Coupling Nut, Rotatable, Strain Relief Backshell, Coupling Nut, Rotatable, Strain Relief
Shielding Unshielded Unshielded Unshielded Unshielded
Current Rating (Amps) 3A 3A 3A 3A
Voltage Rating 200VAC, 250VDC 200VAC, 250VDC 200VAC, 250VDC 200VAC, 250VDC
Cable Opening 0.224" ~ 0.256" (5.70mm ~ 6.50mm) 0.224" ~ 0.256" (5.70mm ~ 6.50mm) 0.256" ~ 0.287" (6.50mm ~ 7.30mm) 0.315" ~ 0.354" (8.00mm ~ 9.00mm)
Operating Temperature -25°C ~ 125°C -25°C ~ 125°C -25°C ~ 125°C -25°C ~ 125°C
