HR31-5.08R-5PDL(72)
  • Share:

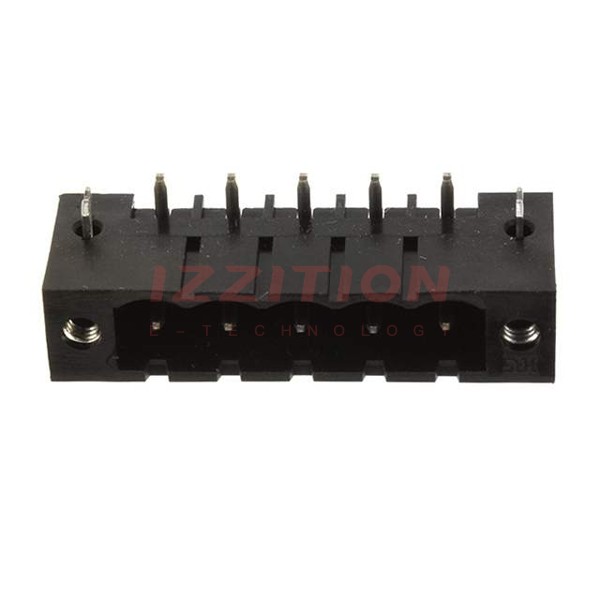

Hirose Electric Co Ltd HR31-5.08R-5PDL(72)

Manufacturer No:
HR31-5.08R-5PDL(72)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HR31-5.08R-5PDL(72) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 5POS 5.08MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.200" (5.08mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Threaded
Contact Length - Mating:-
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.339" (8.61mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Board Lock, Mating Flange
Operating Temperature:-40°C ~ 100°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$7.41
22

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR31-5.08R-5PDL(72) HR31-5.08R-5PD(72)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Obsolete
Connector Type Header Header
Contact Type Male Pin Male Pin
Pitch - Mating 0.200" (5.08mm) 0.200" (5.08mm)
Number of Positions 5 5
Number of Rows 1 1
Row Spacing - Mating - -
Number of Positions Loaded All All
Style Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole
Termination Solder Solder
Fastening Type Threaded Threaded
Contact Length - Mating - -
Contact Length - Post 0.130" (3.30mm) 0.169" (4.30mm)
Overall Contact Length - -
Insulation Height 0.339" (8.61mm) 0.472" (12.00mm)
Contact Shape Circular Circular
Contact Finish - Mating Gold Gold
Contact Finish Thickness - Mating - -
Contact Finish - Post - -
Contact Material Brass Brass
Insulation Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT)
Features Board Lock, Mating Flange Mating Flange
Operating Temperature -40°C ~ 100°C -40°C ~ 100°C
Ingress Protection - -
Material Flammability Rating UL94 V-0 UL94 V-0
Insulation Color Black Black
Current Rating (Amps) - -
Voltage Rating - -
