Please send RFQ , we will respond immediately.

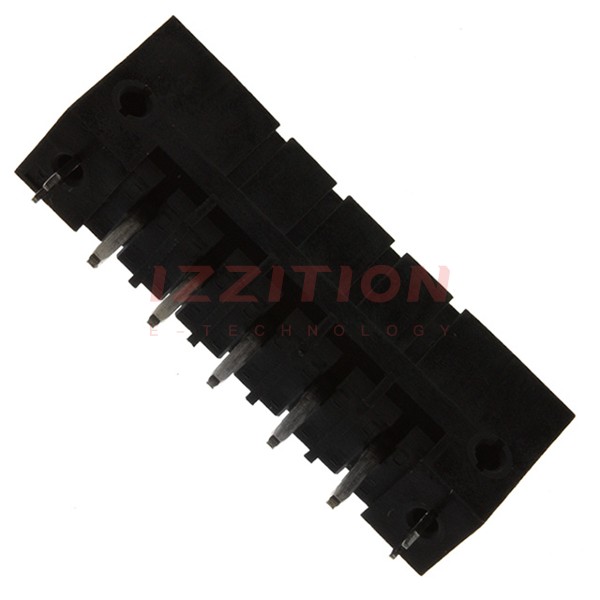

| Part Number | HR31-5.08R-5PD(72) | HR31-5.08R-5PDL(72) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Number of Positions | 5 | 5 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Threaded | Threaded |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.169" (4.30mm) | 0.130" (3.30mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.472" (12.00mm) | 0.339" (8.61mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | - | - |
| Contact Material | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Features | Mating Flange | Board Lock, Mating Flange |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | - |
