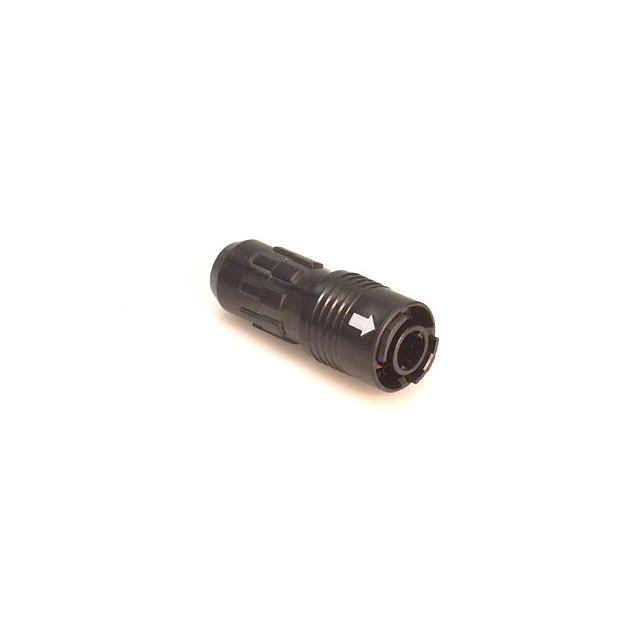

| Part Number | HR30-8P-12PC | HR30-8PB-12PC |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active |
| Connector Type | Plug Housing | Plug Housing |
| Type | For Male Pins | For Male Pins |
| Number of Positions | 12 | 12 |
| Shell Size - Insert | 8 | 8 |
| Shell Size, MIL | - | - |
| Contact Type | Crimp | Crimp |
| Contact Size | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Fastening Type | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed |
| Primary Material | - | - |
| Shell Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Shell Finish | - | - |
| Housing Color | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Strain Relief | Backshell, Strain Relief |
| Shielding | Unshielded | Unshielded |
