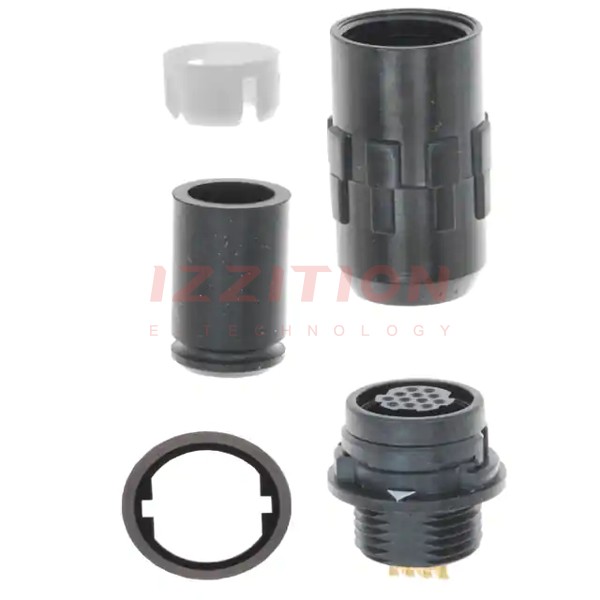

| Part Number | HR30-8J-12SC | HR30-8JB-12SC | HR30-8R-12SC |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Obsolete |
| Connector Type | Jack Housing | Jack Housing | Receptacle Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets |
| Number of Positions | 12 | 12 | 12 |
| Shell Size - Insert | 8 | 8 | 8 |
| Shell Size, MIL | - | - | - |
| Contact Type | Crimp | Crimp | Crimp |
| Contact Size | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | - | - | Bulkhead - Rear Side Nut |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | - | - | - |
| Shell Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Shell Finish | - | - | - |
| Housing Color | Black | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Strain Relief | Backshell, Strain Relief | - |
| Shielding | Unshielded | Unshielded | Unshielded |
