HR30-7R-12P(71)
  • Share:

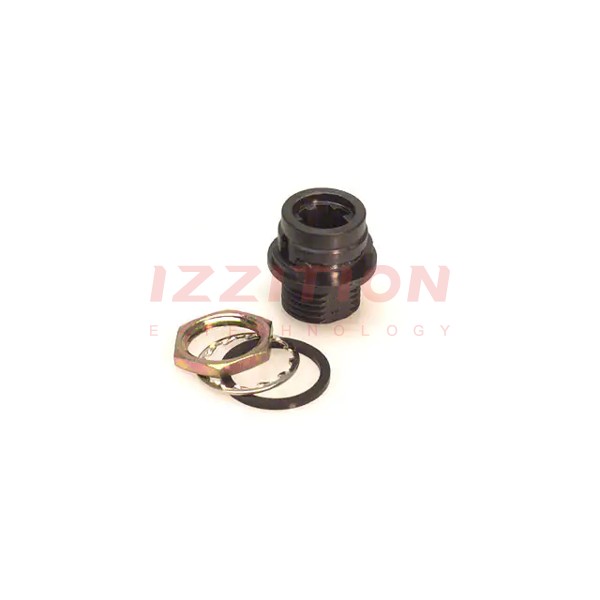

Hirose Electric Co Ltd HR30-7R-12P(71)

Manufacturer No:
HR30-7R-12P(71)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HR30-7R-12P(71) Datasheet
ECAD Model:
-
Description:
CONN RCPT MALE 12P GOLD SLDR CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Male Pins
Number of Positions:12 (Power)
Shell Size - Insert:7
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Bulkhead - Rear Side Nut
Termination:Solder Cup
Fastening Type:Push-Pull
Orientation:Keyed
Primary Material:Plastic
Shell Material:Polyphenylene Sulfide (PPS)
Shell Finish:-
Contact Finish - Mating:Gold
Color:Black
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:-
Shielding:-
Current Rating (Amps):2A
Voltage Rating:30VAC, 42VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

-
353

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR30-7R-12P(71) HR30-7R-12PD(71)   HR30-7J-12P(71)   HR30-7R-12P(31)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Active Active
Connector Type Receptacle, Male Pins Receptacle, Male Pins Jack, Male Pins Receptacle, Male Pins
Number of Positions 12 (Power) 12 (Power) 12 (Power) 12 (Power)
Shell Size - Insert 7 7 7 7
Shell Size, MIL - - - -
Mounting Type Panel Mount Panel Mount, Through Hole Free Hanging (In-Line) Panel Mount
Mounting Feature Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut - Bulkhead - Rear Side Nut
Termination Solder Cup Solder Solder Cup Solder Cup
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull
Orientation Keyed Keyed Keyed Keyed
Primary Material Plastic Plastic Plastic Plastic
Shell Material Polyphenylene Sulfide (PPS) Polyphenylene Sulfide (PPS) Polyphenylene Sulfide (PPS) Polyphenylene Sulfide (PPS)
Shell Finish - - - -
Contact Finish - Mating Gold Gold Gold Gold
Color Black Black Black Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features - - Backshell, Strain Relief -
Shielding - - - Unshielded
Current Rating (Amps) 2A 2A 2A 2A
Voltage Rating 30VAC, 42VDC 30VAC, 42VDC 30VAC, 42VDC 30VAC, 42VDC
Cable Opening - - 0.244" ~ 0.276" (6.20mm ~ 7.00mm) -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
