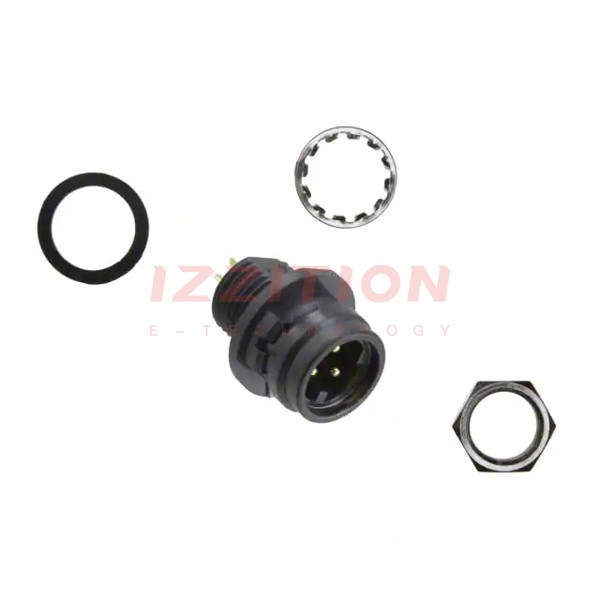

| Part Number | HR30-6R-3P(71) | HR30-6R-6P(71) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Number of Positions | 3 (Power) | 6 (Power) |
| Shell Size - Insert | 6 | 6 |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Shell Finish | - | - |
| Contact Finish - Mating | Gold | Gold |
| Color | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | - | - |
| Shielding | - | - |
| Current Rating (Amps) | 5A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
