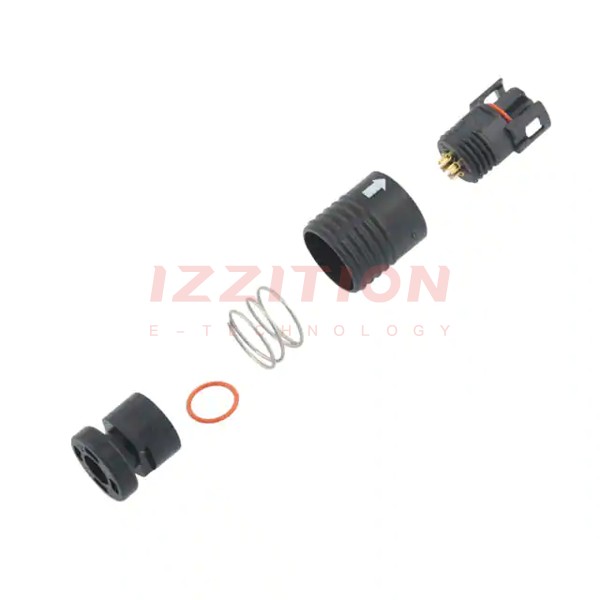

| Part Number | HR30-6PB-6S | HR30-6JB-6S | HR30-6P-6S | HR30-6PA-6S | HR30-6PB-3S | HR30-6PB-6P |
|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Active |
| Connector Type | Plug, Female Sockets | Jack, Female Sockets | - | - | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 6 (Power) | 6 (Power) | - | - | 3 (Power) | 6 (Power) |
| Shell Size - Insert | 6 | 6 | - | - | 6 | 6 |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | - | - | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - |
| Termination | Solder Cup | Solder Cup | - | - | Solder Cup | Solder Cup |
| Fastening Type | Push-Pull | Push-Pull | - | - | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | - | - | Keyed | Keyed |
| Primary Material | - | Plastic | - | - | - | - |
| Shell Material | - | Polyphenylene Sulfide (PPS) | - | - | - | - |
| Shell Finish | - | - | - | - | - | - |
| Contact Finish - Mating | Gold | Gold | - | - | Gold | Gold |
| Color | Black | Black | - | - | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | - | - | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | - | - | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Strain Relief | Backshell, Strain Relief | - | - | Backshell, Strain Relief | Backshell, Strain Relief |
| Shielding | - | - | - | - | - | - |
| Current Rating (Amps) | 2A | 2A | - | - | 5A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | - | - | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | - | - | -25°C ~ 85°C | -25°C ~ 85°C |
