Please send RFQ , we will respond immediately.

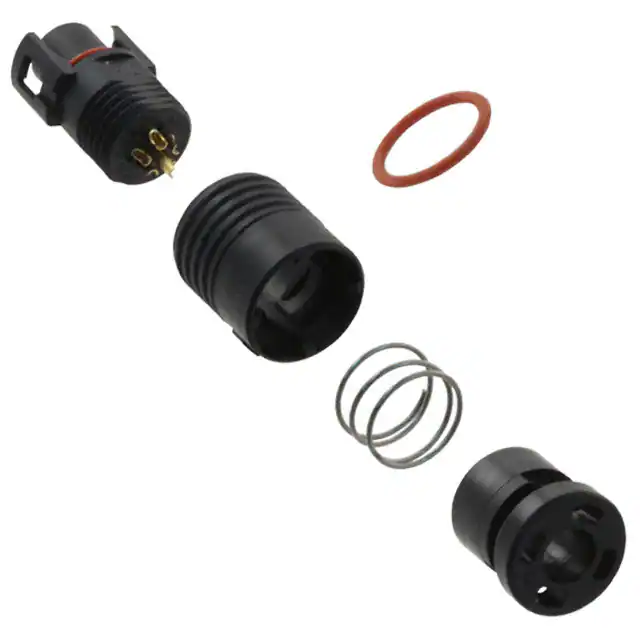

| Part Number | HR30-6PB-6P | HR30-6PB-6S | HR30-6JB-6P | HR30-6P-6P | HR30-6PA-6P |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Connector Type | Plug, Male Pins | Plug, Female Sockets | Jack, Male Pins | - | - |
| Number of Positions | 6 (Power) | 6 (Power) | 6 (Power) | - | - |
| Shell Size - Insert | 6 | 6 | 6 | - | - |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | - | - |
| Mounting Feature | - | - | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | - | - |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | - | - |
| Orientation | Keyed | Keyed | Keyed | - | - |
| Primary Material | - | - | Plastic | - | - |
| Shell Material | - | - | Polyphenylene Sulfide (PPS) | - | - |
| Shell Finish | - | - | - | - | - |
| Contact Finish - Mating | Gold | Gold | Gold | - | - |
| Color | Black | Black | Black | - | - |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | - | - |
| Features | Backshell, Strain Relief | Backshell, Strain Relief | Backshell, Strain Relief | - | - |
| Shielding | - | - | - | - | - |
| Current Rating (Amps) | 2A | 2A | 2A | - | - |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | - | - |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | - | - |
