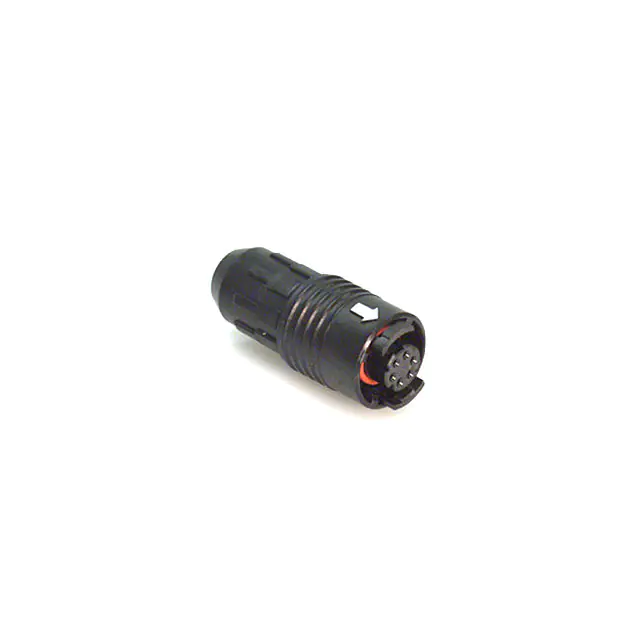

| Part Number | HR30-6PA-6S | HR30-6PB-6S | HR30-6P-6S | HR30-6PA-3S | HR30-6PA-6P |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Connector Type | - | Plug, Female Sockets | - | - | - |
| Number of Positions | - | 6 (Power) | - | - | - |
| Shell Size - Insert | - | 6 | - | - | - |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | - | Free Hanging (In-Line) | - | - | - |
| Mounting Feature | - | - | - | - | - |
| Termination | - | Solder Cup | - | - | - |
| Fastening Type | - | Push-Pull | - | - | - |
| Orientation | - | Keyed | - | - | - |
| Primary Material | - | - | - | - | - |
| Shell Material | - | - | - | - | - |
| Shell Finish | - | - | - | - | - |
| Contact Finish - Mating | - | Gold | - | - | - |
| Color | - | Black | - | - | - |
| Ingress Protection | - | IP67/IP68 - Dust Tight, Waterproof | - | - | - |
| Material Flammability Rating | - | UL94 V-0 | - | - | - |
| Features | - | Backshell, Strain Relief | - | - | - |
| Shielding | - | - | - | - | - |
| Current Rating (Amps) | - | 2A | - | - | - |
| Voltage Rating | - | 100VAC, 140VDC | - | - | - |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | - | -25°C ~ 85°C | - | - | - |
