Please send RFQ , we will respond immediately.

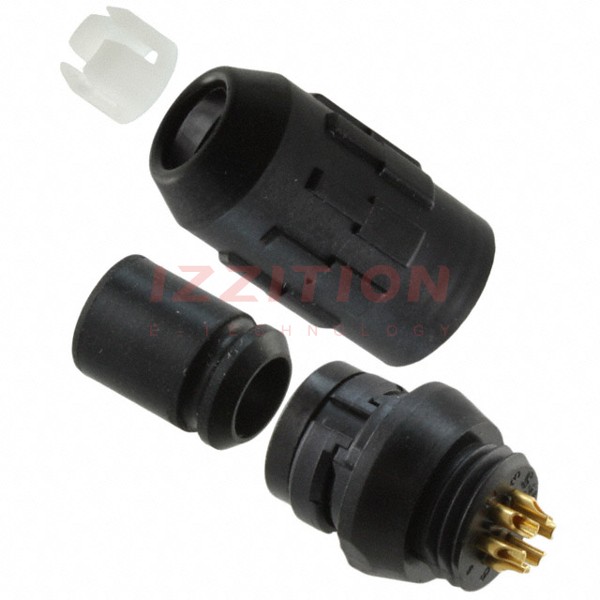

| Part Number | HR30-6J-6P(71) | HR30-6R-6P(71) | HR30-6JA-6P(71) | HR30-6P-6P(71) | HR30-6J-6P(31) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Active | Obsolete | Active |
| Connector Type | Jack, Male Pins | Receptacle, Male Pins | Jack, Male Pins | Plug, Male Pins | Jack, Male Pins |
| Number of Positions | 6 (Power) | 6 (Power) | 6 (Power) | 6 | 6 (Power) |
| Shell Size - Insert | 6 | 6 | 6 | 6 | 6 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Rear Side Nut | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Plastic | Plastic | Plastic | Plastic | Plastic |
| Shell Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polybutylene Terephthalate (PBT) | Polyphenylene Sulfide (PPS) |
| Shell Finish | - | - | - | - | - |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold |
| Color | Black | Black | Black | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Strain Relief | - | Backshell, Strain Relief | Backshell, Strain Relief | Backshell, Strain Relief |
| Shielding | - | - | - | - | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | 0.165" ~ 0.197" (4.20mm ~ 5.00mm) | - | 0.138" ~ 0.169" (3.50mm ~ 4.30mm) | 0.165" ~ 0.197" (4.20mm ~ 5.00mm) | 0.165" ~ 0.197" (4.20mm ~ 5.00mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
