HR25A-9J-20S
  • Share:

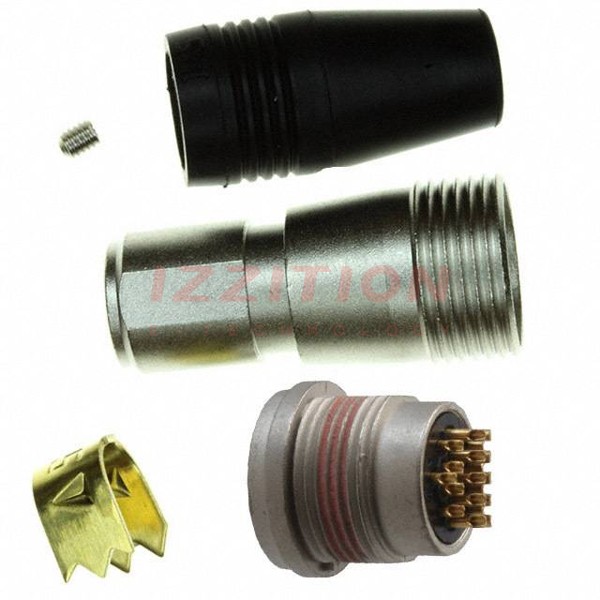

Hirose Electric Co Ltd HR25A-9J-20S

Manufacturer No:
HR25A-9J-20S
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR25A-9J-20S Datasheet
ECAD Model:
-
Description:
CONN JACK FMALE 20P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Jack, Female Sockets
Number of Positions:20
Shell Size - Insert:9
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Push-Pull
Orientation:Keyed
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Black, Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:Backshell, Clamp, Strain Relief
Shielding:-
Current Rating (Amps):1A
Voltage Rating:30VAC, 42VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$35.11
13

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR25A-9J-20S HR25A-9R-20S   HR25A-9P-20S   HR25A-9J-20P
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active
Connector Type Jack, Female Sockets Receptacle, Female Sockets Plug, Female Sockets Jack, Male Pins
Number of Positions 20 20 20 20
Shell Size - Insert 9 9 9 9
Shell Size, MIL - - - -
Mounting Type Free Hanging (In-Line) Panel Mount Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - Bulkhead - Rear Side Nut - -
Termination Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull
Orientation Keyed Keyed Keyed Keyed
Primary Material Metal Metal Metal Metal
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel
Contact Finish - Mating Gold Gold Gold Gold
Color Black, Silver Silver Black, Silver Black, Silver
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Clamp, Strain Relief - Backshell, Clamp, Strain Relief Backshell, Clamp, Strain Relief
Shielding - - - -
Current Rating (Amps) 1A 1A 1A 1A
Voltage Rating 30VAC, 42VDC 30VAC, 42VDC 30VAC, 42VDC 30VAC, 42VDC
Cable Opening - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
