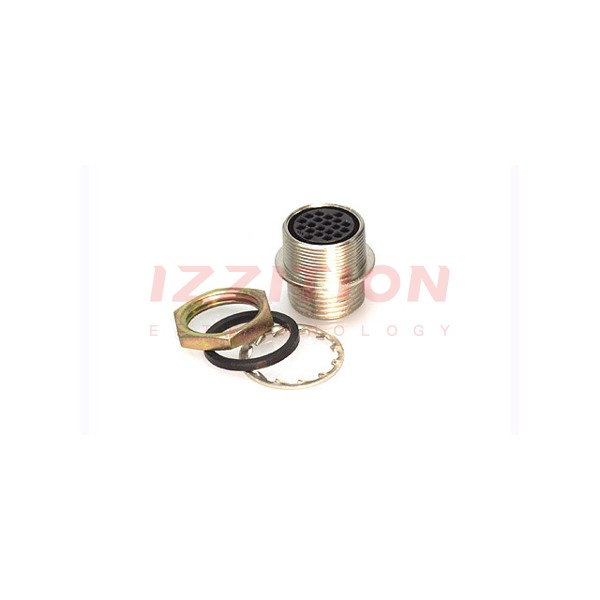

| Part Number | HR25-9TR-20SC | HR25-9R-20SC | HR25-9TJ-20SC | HR25-9TP-20SC | HR25-9TR-20PC |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle Housing | Receptacle Housing | Jack Housing | Plug Housing | Receptacle Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Male Pins |
| Number of Positions | 20 | 20 | 20 | 20 | 20 |
| Shell Size - Insert | 9 | 9 | 9 | 9 | 9 |
| Shell Size, MIL | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | - | - | Bulkhead - Rear Side Nut |
| Fastening Type | Threaded | Push-Pull | Threaded | Threaded | Threaded |
| Orientation | Keyed | - | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | Backshell, Cable Clamp, Strain Relief | Backshell, Cable Clamp, Coupling Nut, Strain Relief | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
