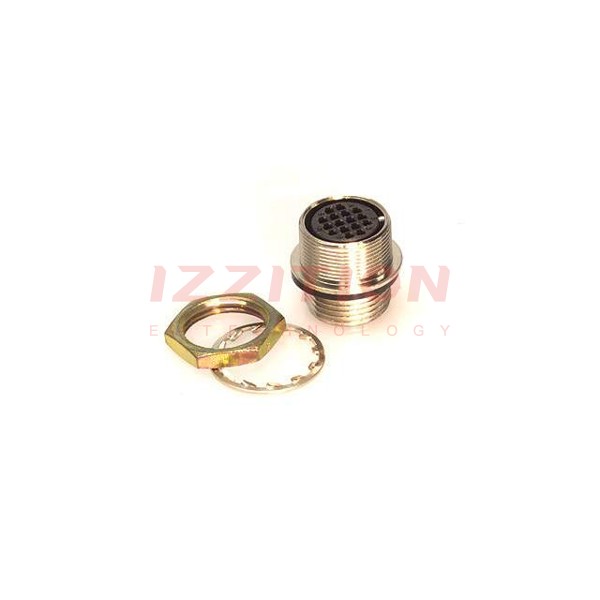

| Part Number | HR25-9TR-16SC(71) | HR25-9R-16SC(71) | HR25-9TR-12SC(71) | HR25-9TR-16PC(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Obsolete | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets | For Male Pins |
| Number of Positions | 16 | 16 | 12 | 16 |
| Shell Size - Insert | 9 | 9 | 9 | 9 |
| Shell Size, MIL | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Fastening Type | Threaded | Push-Pull | Threaded | Threaded |
| Orientation | Keyed | - | Keyed | Keyed |
| Primary Material | - | - | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
