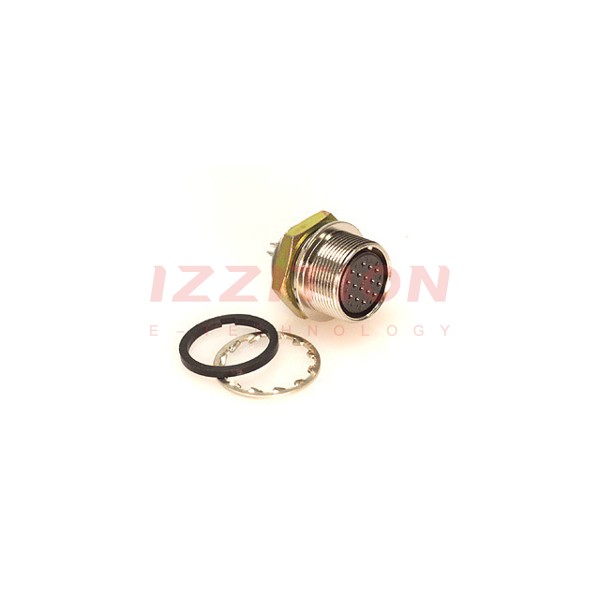

| Part Number | HR25-9TR-16S(71) | HR25-9TR-16SA(71) | HR25-9R-16S(71) | HR25-9TR-12S(71) | HR25-9TR-16P(71) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Obsolete | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | - | Receptacle, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 16 | 16 | - | 12 | 16 |
| Shell Size - Insert | 9 | 9 | - | 9 | 9 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount, Through Hole | - | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | - | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder | - | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | - | Threaded | Threaded |
| Orientation | Keyed | Keyed | - | Keyed | Keyed |
| Primary Material | Metal | Metal | - | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | - | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | - | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | - | Gold | Gold |
| Color | Silver | Silver | - | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | - | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - |
| Shielding | Shielded | Shielded | - | Shielded | Shielded |
| Current Rating (Amps) | 1A | 1A | - | 1A | 1A |
| Voltage Rating | 30VAC, 42VDC | 30VAC, 42VDC | - | 30VAC, 42VDC | 30VAC, 42VDC |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | - | -25°C ~ 85°C | -25°C ~ 85°C |
