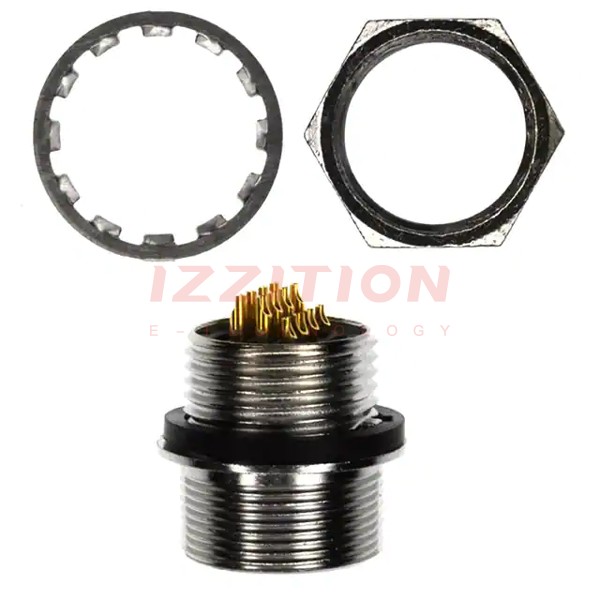

| Part Number | HR25-9TR-12P(71) | HR25-9TR-16P(71) | HR25-9TR-12PA(71) | HR25-9TR-12S(71) | HR25-9R-12P(71) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Obsolete |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Female Sockets | - |
| Number of Positions | 12 | 16 | 12 | 12 | - |
| Shell Size - Insert | 9 | 9 | 9 | 9 | - |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount, Through Hole | Panel Mount | - |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | - |
| Termination | Solder Cup | Solder Cup | Solder | Solder Cup | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | - |
| Orientation | Keyed | Keyed | Keyed | Keyed | - |
| Primary Material | Metal | Metal | Metal | Metal | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | - |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | - |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | - |
| Color | Silver | Silver | Silver | Silver | - |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | - |
| Features | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | - |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | - |
| Voltage Rating | 30VAC, 42VDC | 30VAC, 42VDC | 30VAC, 42VDC | 30VAC, 42VDC | - |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | - |
