HR25-9TP-20SC(72)
  • Share:

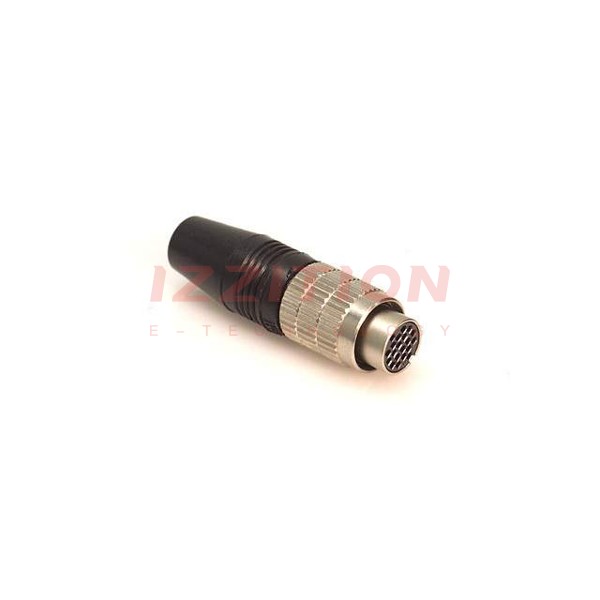

Hirose Electric Co Ltd HR25-9TP-20SC(72)

Manufacturer No:
HR25-9TP-20SC(72)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR25-9TP-20SC(72) Datasheet
ECAD Model:
-
Description:
CONN PLG HSG FMALE 20POS INLINE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug Housing
Type:For Female Sockets
Number of Positions:20
Shell Size - Insert:9
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Fastening Type:Threaded
Orientation:Keyed
Primary Material:-
Shell Material:Zinc Alloy
Shell Finish:Nickel
Housing Color:Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:Backshell, Cable Clamp, Coupling Nut, Strain Relief
Shielding:Shielded
0 Remaining View Similar

In Stock

$27.81
14

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR25-9TP-20SC(72) HR25-9P-20SC(72)   HR25-9TJ-20SC(72)   HR25-9TP-20PC(72)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Obsolete Active Active
Connector Type Plug Housing Plug Housing Jack Housing Plug Housing
Type For Female Sockets For Female Sockets For Female Sockets For Male Pins
Number of Positions 20 20 20 20
Shell Size - Insert 9 9 9 9
Shell Size, MIL - - - -
Contact Type Crimp Crimp Crimp Crimp
Contact Size - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - - - -
Fastening Type Threaded Push-Pull Threaded Threaded
Orientation Keyed - Keyed Keyed
Primary Material - - - -
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel
Housing Color Silver Silver Silver Silver
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut, Strain Relief - Backshell, Cable Clamp, Strain Relief Backshell, Cable Clamp, Coupling Nut, Strain Relief
Shielding Shielded Shielded Shielded Shielded
