HR25-9TP-12S(72)
  • Share:

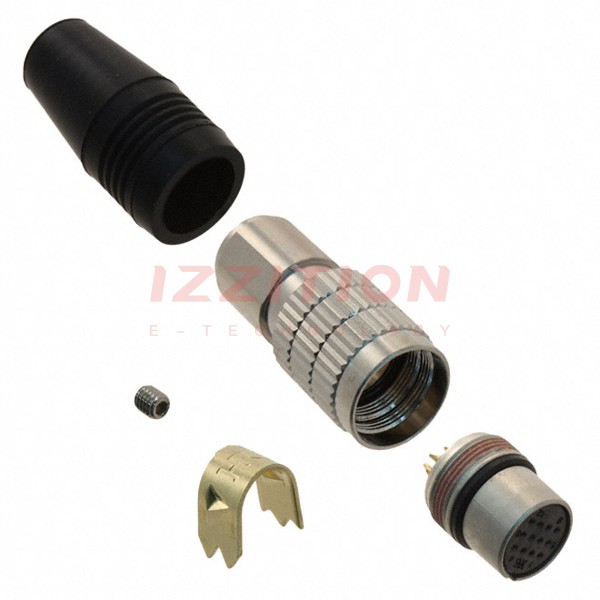

Hirose Electric Co Ltd HR25-9TP-12S(72)

Manufacturer No:
HR25-9TP-12S(72)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR25-9TP-12S(72) Datasheet
ECAD Model:
-
Description:
CONN PLUG FMALE 12P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Female Sockets
Number of Positions:12
Shell Size - Insert:9
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Black, Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:Backshell, Clamp, Coupling Nut, Strain Relief
Shielding:Shielded
Current Rating (Amps):1A
Voltage Rating:30VAC, 42VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$26.07
23

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR25-9TP-12S(72) HR25-9P-12S(72)   HR25-9TJ-12S(72)   HR25-9TP-12P(72)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Obsolete Active Active
Connector Type Plug, Female Sockets - Jack, Female Sockets Plug, Male Pins
Number of Positions 12 - 12 12
Shell Size - Insert 9 - 9 9
Shell Size, MIL - - - -
Mounting Type Free Hanging (In-Line) - Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - - - -
Termination Solder Cup - Solder Cup Solder Cup
Fastening Type Threaded - Threaded Threaded
Orientation Keyed - Keyed Keyed
Primary Material Metal - Metal Metal
Shell Material Zinc Alloy - Zinc Alloy Zinc Alloy
Shell Finish Nickel - Nickel Nickel
Contact Finish - Mating Gold - Gold Gold
Color Black, Silver - Black, Silver Black, Silver
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 - UL94 V-0 UL94 V-0
Features Backshell, Clamp, Coupling Nut, Strain Relief - Backshell, Clamp, Strain Relief Backshell, Clamp, Coupling Nut, Strain Relief
Shielding Shielded - Shielded Shielded
Current Rating (Amps) 1A - 1A 1A
Voltage Rating 30VAC, 42VDC - 30VAC, 42VDC 30VAC, 42VDC
Cable Opening - - - -
Operating Temperature -25°C ~ 85°C - -25°C ~ 85°C -25°C ~ 85°C
