HR25-9R-16SC
  • Share:

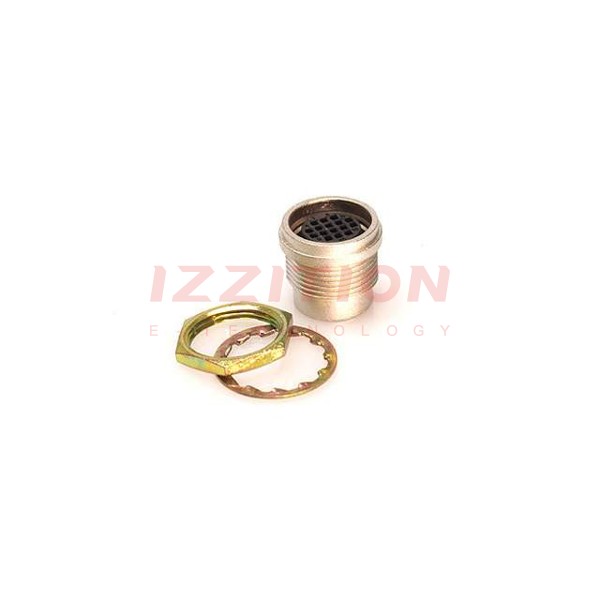

Hirose Electric Co Ltd HR25-9R-16SC

Manufacturer No:
HR25-9R-16SC
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR25-9R-16SC Datasheet
ECAD Model:
-
Description:
CONN RCPT HSG FMALE 16POS PNL MT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle Housing
Type:For Female Sockets
Number of Positions:16
Shell Size - Insert:9
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:-
Mounting Type:Panel Mount
Mounting Feature:Bulkhead - Rear Side Nut
Fastening Type:Push-Pull
Orientation:-
Primary Material:-
Shell Material:Zinc Alloy
Shell Finish:Nickel
Housing Color:Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:-
Shielding:Shielded
0 Remaining View Similar

In Stock

-
90

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR25-9R-16SC HR25A-9R-16SC   HR25-9TR-16SC   HR25-9J-16SC   HR25-9P-16SC   HR25-9R-12SC   HR25-9R-16PC
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Active Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Receptacle Housing Receptacle Housing Receptacle Housing Jack Housing Plug Housing Receptacle Housing Receptacle Housing
Type For Female Sockets For Female Sockets For Female Sockets For Female Sockets For Female Sockets For Female Sockets For Male Pins
Number of Positions 16 16 16 16 16 12 16
Shell Size - Insert 9 9 9 9 9 9 9
Shell Size, MIL - - - - - - -
Contact Type Crimp Crimp Crimp Crimp Crimp Crimp Crimp
Contact Size - - - - - - -
Mounting Type Panel Mount Panel Mount Panel Mount Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount Panel Mount
Mounting Feature Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut - - Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut
Fastening Type Push-Pull Push-Pull Threaded Push-Pull Push-Pull Push-Pull Push-Pull
Orientation - Keyed Keyed - - - -
Primary Material - - - - - - -
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel Nickel Nickel Nickel
Housing Color Silver Silver Silver Silver Silver Silver Silver
Ingress Protection - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features - - - - - - -
Shielding Shielded Unshielded Shielded Shielded Shielded Shielded Shielded
