HR25-9R-16PC
  • Share:

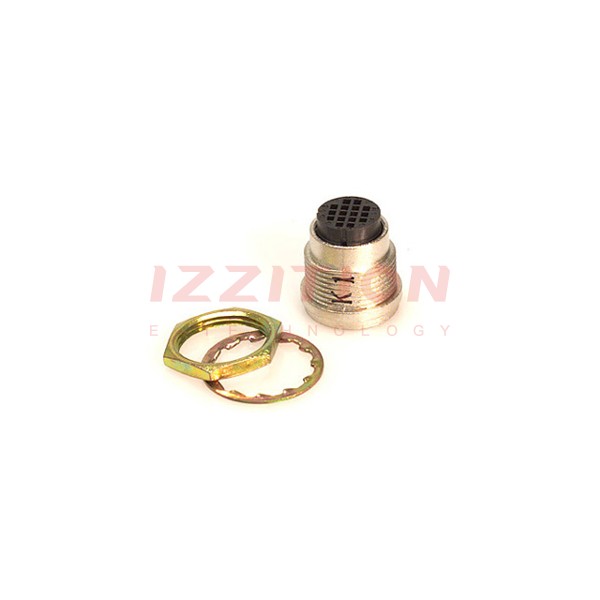

Hirose Electric Co Ltd HR25-9R-16PC

Manufacturer No:
HR25-9R-16PC
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR25-9R-16PC Datasheet
ECAD Model:
-
Description:
CONN RCPT HSNG MALE 16POS PNL MT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle Housing
Type:For Male Pins
Number of Positions:16
Shell Size - Insert:9
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:-
Mounting Type:Panel Mount
Mounting Feature:Bulkhead - Rear Side Nut
Fastening Type:Push-Pull
Orientation:-
Primary Material:-
Shell Material:Zinc Alloy
Shell Finish:Nickel
Housing Color:Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:-
Shielding:Shielded
0 Remaining View Similar

In Stock

-
485

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR25-9R-16PC HR25A-9R-16PC   HR25-9TR-16PC   HR25-9R-16SC   HR25-9J-16PC   HR25-9P-16PC   HR25-9R-12PC
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Active Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Receptacle Housing Receptacle Housing Receptacle Housing Receptacle Housing Jack Housing Plug Housing Receptacle Housing
Type For Male Pins For Male Pins For Male Pins For Female Sockets For Male Pins For Male Pins For Male Pins
Number of Positions 16 16 16 16 16 16 12
Shell Size - Insert 9 9 9 9 9 9 9
Shell Size, MIL - - - - - - -
Contact Type Crimp Crimp Crimp Crimp Crimp Crimp Crimp
Contact Size - - - - - - -
Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount
Mounting Feature Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut - - Bulkhead - Rear Side Nut
Fastening Type Push-Pull Push-Pull Threaded Push-Pull Push-Pull Push-Pull Push-Pull
Orientation - Keyed Keyed - - - -
Primary Material - - - - - - -
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel Nickel Nickel Nickel
Housing Color Silver Silver Silver Silver Silver Silver Silver
Ingress Protection - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features - - - - - - -
Shielding Shielded Unshielded Shielded Shielded Shielded Shielded Shielded
