HR25-9P-20PC(72)
  • Share:

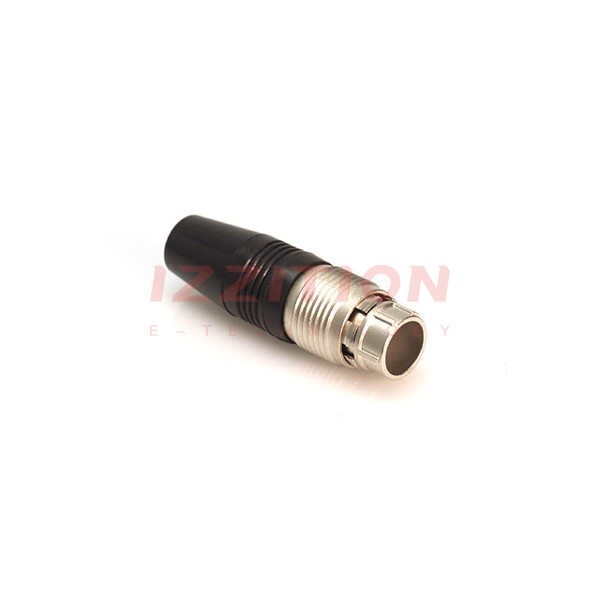

Hirose Electric Co Ltd HR25-9P-20PC(72)

Manufacturer No:
HR25-9P-20PC(72)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR25-9P-20PC(72) Datasheet
ECAD Model:
-
Description:
CONN PLUG HSG MALE 20POS INLINE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug Housing
Type:For Male Pins
Number of Positions:20
Shell Size - Insert:9
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Fastening Type:Push-Pull
Orientation:-
Primary Material:-
Shell Material:Zinc Alloy
Shell Finish:Nickel
Housing Color:Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:-
Shielding:Shielded
0 Remaining View Similar

In Stock

-
46

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR25-9P-20PC(72) HR25-9TP-20PC(72)   HR25-9P-20SC(72)   HR25-9J-20PC(72)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Active Obsolete Obsolete
Connector Type Plug Housing Plug Housing Plug Housing Jack Housing
Type For Male Pins For Male Pins For Female Sockets For Male Pins
Number of Positions 20 20 20 20
Shell Size - Insert 9 9 9 9
Shell Size, MIL - - - -
Contact Type Crimp Crimp Crimp Crimp
Contact Size - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - - - -
Fastening Type Push-Pull Threaded Push-Pull Push-Pull
Orientation - Keyed - -
Primary Material - - - -
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel
Housing Color Silver Silver Silver Silver
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features - Backshell, Cable Clamp, Coupling Nut, Strain Relief - -
Shielding Shielded Shielded Shielded Shielded
