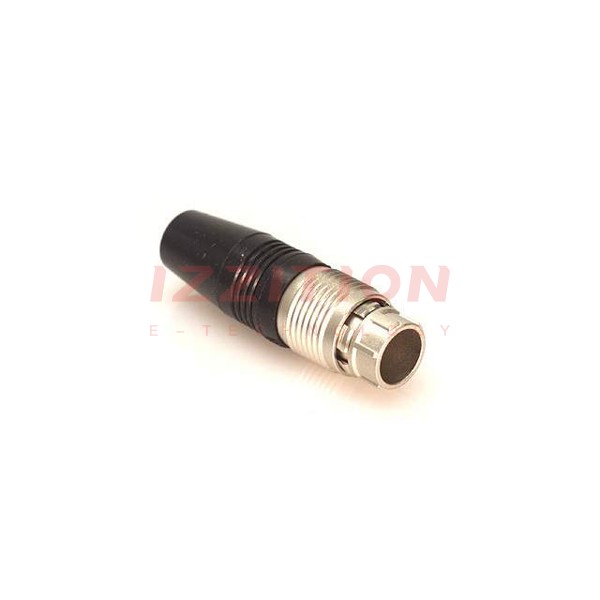

| Part Number | HR25-9P-20P(72) | HR25-9TP-20P(72) | HR25-9P-20S(72) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Obsolete |
| Connector Type | - | Plug, Male Pins | - |
| Number of Positions | - | 20 | - |
| Shell Size - Insert | - | 9 | - |
| Shell Size, MIL | - | - | - |
| Mounting Type | - | Free Hanging (In-Line) | - |
| Mounting Feature | - | - | - |
| Termination | - | Solder Cup | - |
| Fastening Type | - | Threaded | - |
| Orientation | - | Keyed | - |
| Primary Material | - | Metal | - |
| Shell Material | - | Zinc Alloy | - |
| Shell Finish | - | Nickel | - |
| Contact Finish - Mating | - | Gold | - |
| Color | - | Black, Silver | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | - | UL94 V-0 | - |
| Features | - | Backshell, Clamp, Coupling Nut, Strain Relief | - |
| Shielding | - | Shielded | - |
| Current Rating (Amps) | - | 1A | - |
| Voltage Rating | - | 30VAC, 42VDC | - |
| Cable Opening | - | - | - |
| Operating Temperature | - | -25°C ~ 85°C | - |
