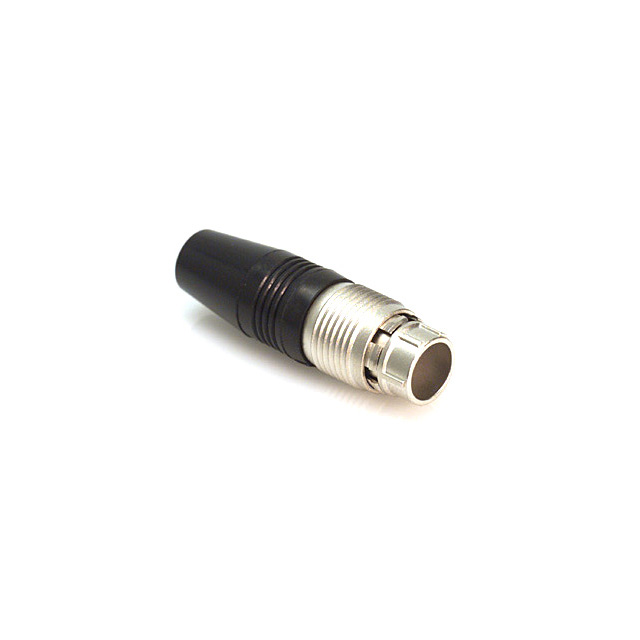

| Part Number | HR25-9P-12PC(72) | HR25-9TP-12PC(72) | HR25-9P-16PC(72) | HR25-9P-12SC(72) | HR25-9J-12PC(72) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Connector Type | Plug Housing | Plug Housing | Plug Housing | Plug Housing | Jack Housing |
| Type | For Male Pins | For Male Pins | For Male Pins | For Female Sockets | For Male Pins |
| Number of Positions | 12 | 12 | 16 | 12 | 12 |
| Shell Size - Insert | 9 | 9 | 9 | 9 | 9 |
| Shell Size, MIL | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - |
| Fastening Type | Push-Pull | Threaded | Push-Pull | Push-Pull | Push-Pull |
| Orientation | - | Keyed | - | - | - |
| Primary Material | - | - | - | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | Backshell, Cable Clamp, Coupling Nut, Strain Relief | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
