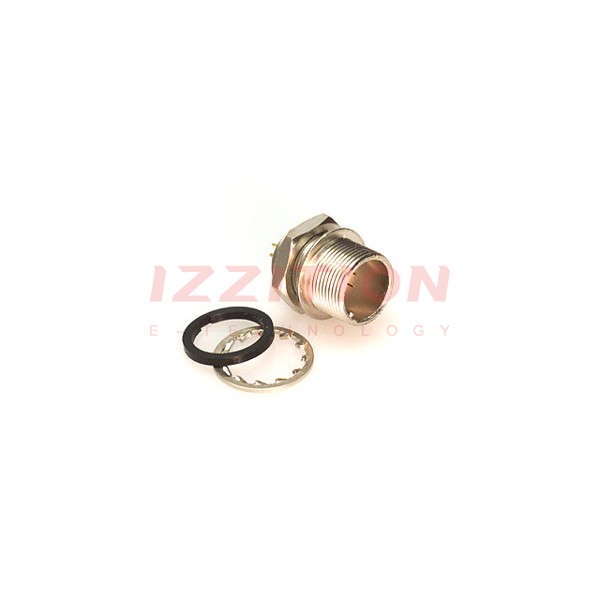

| Part Number | HR25-7TR-8P(73) | HR25-7TR-8S(73) | HR25-7TR-8PA(73) | HR25-7TR-4P(73) | HR25-7TR-6P(73) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins |
| Number of Positions | 8 | 8 | 8 | 4 | 6 |
| Shell Size - Insert | 7 | 7 | 7 | 7 | 7 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount, Through Hole | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder Cup | Solder | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A |
| Voltage Rating | 30VAC, 42VDC | 30VAC, 42VDC | 30VAC, 42VDC | 30VAC, 42VDC | 30VAC, 42VDC |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
