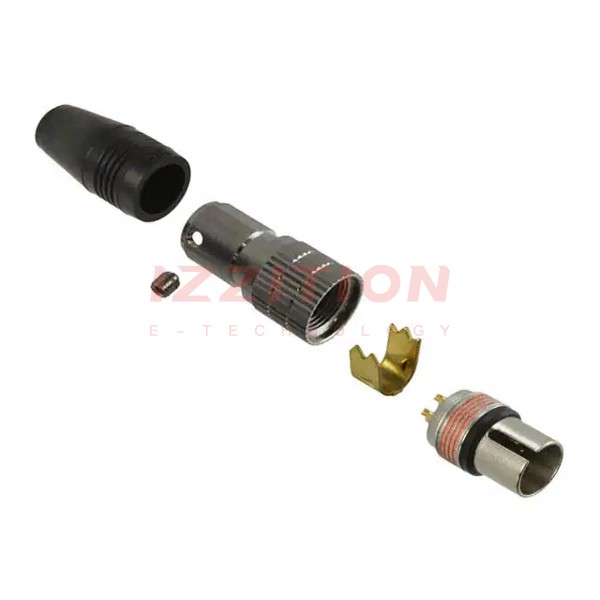

| Part Number | HR25-7TP-4P(72) | HR25-7TP-8P(72) | HR25-7TP-6P(72) | HR25-7TP-4S(72) | HR25-7P-4P(72) | HR25-7TJ-4P(72) |
|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Female Sockets | - | Jack, Male Pins |
| Number of Positions | 4 | 8 | 6 | 4 | - | 4 |
| Shell Size - Insert | 7 | 7 | 7 | 7 | - | 7 |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | - | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | - | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | - | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | - | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | - | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | - | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | - | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | - | Gold |
| Color | Black, Silver | Black, Silver | Black, Silver | Black, Silver | - | Black, Silver |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | - | UL94 V-0 |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Coupling Nut, Strain Relief | - | Backshell, Clamp, Strain Relief |
| Shielding | Shielded | Shielded | Shielded | Shielded | - | Shielded |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | - | 1A |
| Voltage Rating | 30VAC, 42VDC | 30VAC, 42VDC | 30VAC, 42VDC | 30VAC, 42VDC | - | 30VAC, 42VDC |
| Cable Opening | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | - | -25°C ~ 85°C |
