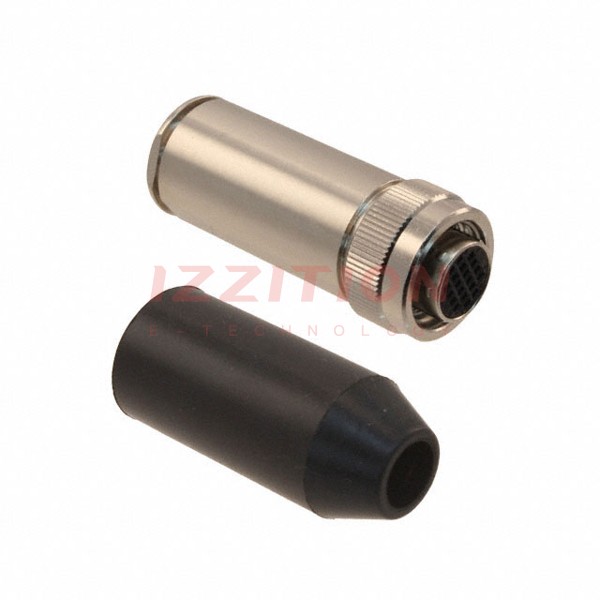

| Part Number | HR22-12WTPA-20SC(73) | HR22-12WTRA-20SC(73) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Plug Housing | Receptacle Housing |
| Type | For Female Sockets | For Female Sockets |
| Number of Positions | 20 | 20 |
| Shell Size - Insert | 12 | 12 |
| Shell Size, MIL | - | - |
| Contact Type | Crimp | Crimp |
| Contact Size | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel |
| Housing Color | Silver | Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut, Strain Relief | - |
| Shielding | Unshielded | Unshielded |
