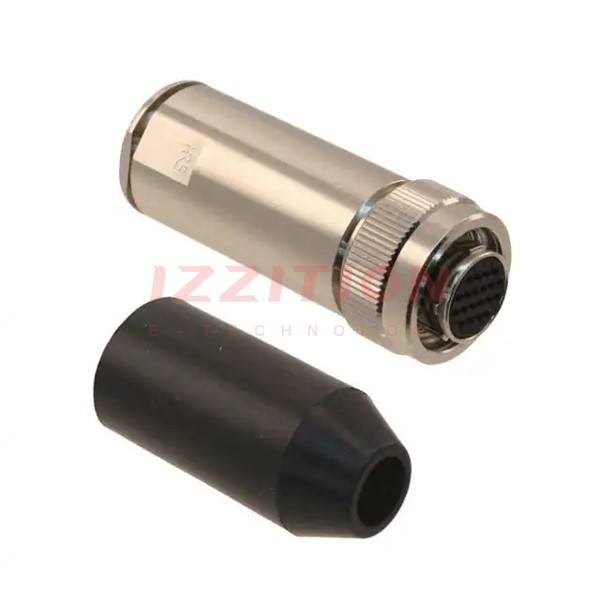

| Part Number | HR22-12WTPA-20S(73) | HR22-12WTRA-20S(73) | HR22-12WTPE-20S(73) | HR22-12WTPA-20P(73) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Obsolete | Active |
| Connector Type | Plug, Female Sockets | Receptacle, Female Sockets | - | Plug, Male Pins |
| Number of Positions | 20 | 20 | - | 20 |
| Shell Size - Insert | 12 | 12 | - | 12 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | - | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Front Side Nut | - | - |
| Termination | Solder Cup | Solder Cup | - | Solder Cup |
| Fastening Type | Threaded | Threaded | - | Threaded |
| Orientation | Keyed | Keyed | - | Keyed |
| Primary Material | Metal | Metal | - | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | - | Zinc Alloy |
| Shell Finish | Nickel | Nickel | - | Nickel |
| Contact Finish - Mating | Silver | Silver | - | Silver |
| Color | Black, Silver | Silver | - | Black, Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | - | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | - | UL94 V-0 |
| Features | Backshell, Clamp, Coupling Nut | - | - | Backshell, Clamp, Coupling Nut |
| Shielding | Unshielded | Unshielded | - | Unshielded |
| Current Rating (Amps) | 2A | 2A | - | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | - | 100VAC, 140VDC |
| Cable Opening | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | - | -25°C ~ 85°C |
