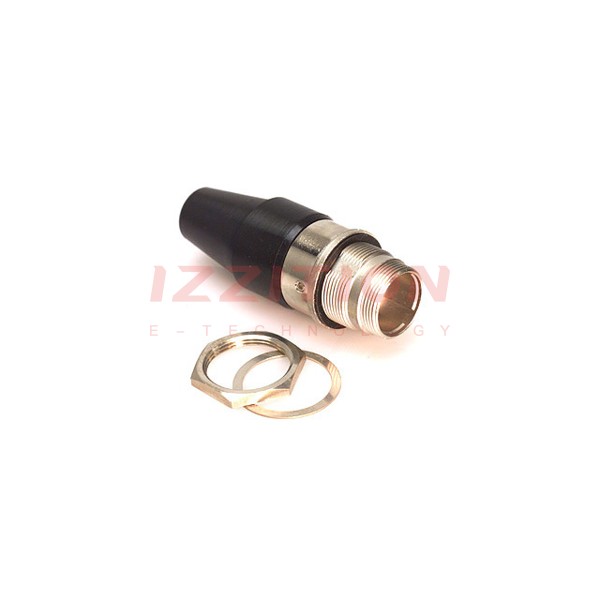

| Part Number | HR22-12TJD-20PC | HR22-12TPD-20PC |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Jack Housing | Plug Housing |
| Type | For Male Pins | For Male Pins |
| Number of Positions | 20 | 20 |
| Shell Size - Insert | 12 | 12 |
| Shell Size, MIL | - | - |
| Contact Type | Crimp | Crimp |
| Contact Size | - | - |
| Mounting Type | Free Hanging (In-Line); Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Bulkhead - Front Side Nut | - |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel |
| Housing Color | Silver | Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Cable Clamp, Strain Relief | Backshell, Cable Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded | Unshielded |
