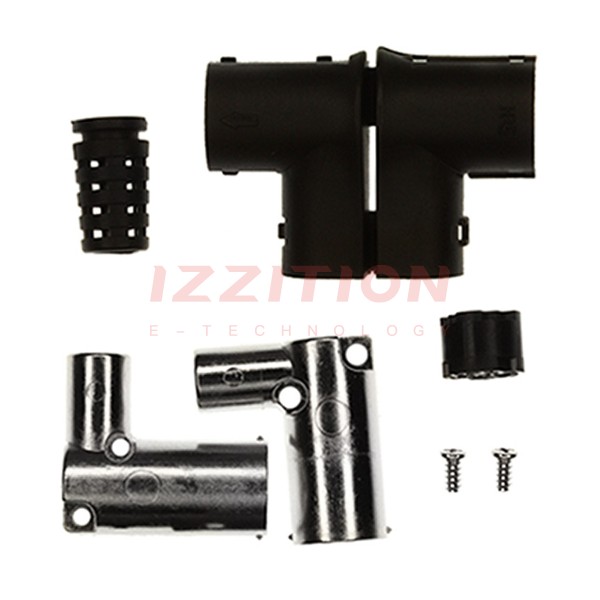

| Part Number | HR212-10LP-8PC(71) | HR212-10P-8PC(71) | HR212-10LP-5PC(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Obsolete |
| Connector Type | Plug Housing | Plug Housing | Plug Housing |
| Type | For Male Pins | For Male Pins | For Male Pins |
| Number of Positions | 8 | 8 | 5 |
| Shell Size - Insert | 10 | 10 | 10 |
| Shell Size, MIL | - | - | - |
| Contact Type | Crimp | Crimp | Crimp |
| Contact Size | 1.0mm | 1.0mm | 1.0mm |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - | - |
| Fastening Type | Snap-In | Snap-In | Snap-In |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | - | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Strain Relief | Backshell, Strain Relief | Backshell, Strain Relief |
| Shielding | Shielded | Shielded | Shielded |
