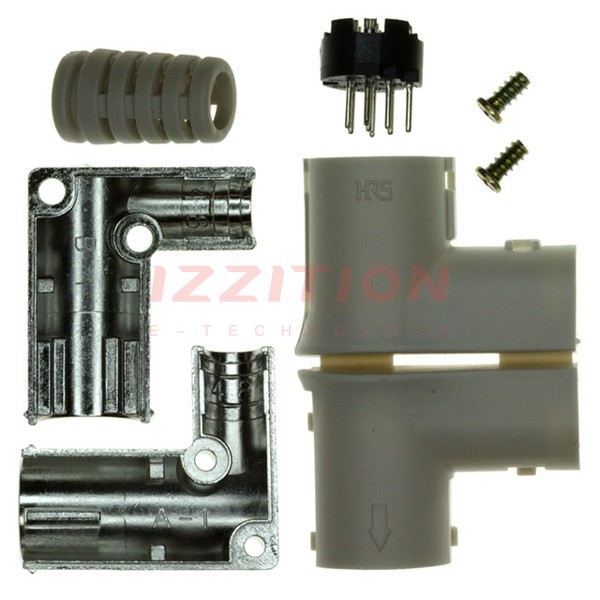

| Part Number | HR212-10LP-8P(01) | HR212-10LP-8P(71) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 8 | 8 |
| Shell Size - Insert | 10 | 10 |
| Shell Size, MIL | - | - |
| Mounting Type | - | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - |
| Termination | - | Solder Cup |
| Fastening Type | Snap-In | Snap-In |
| Orientation | Keyed | Keyed |
| Primary Material | - | Metal |
| Shell Material | - | Zinc Alloy |
| Shell Finish | - | Nickel |
| Contact Finish - Mating | - | Tin |
| Color | - | Black, Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | - | UL94 V-0 |
| Features | - | Backshell, Strain Relief |
| Shielding | Shielded | Shielded |
| Current Rating (Amps) | - | - |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - |
| Operating Temperature | - | -15°C ~ 60°C |
