Please send RFQ , we will respond immediately.

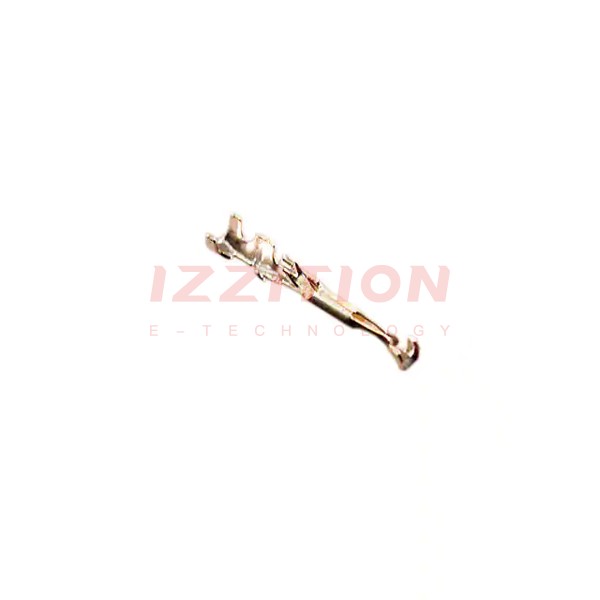

| Part Number | HR12-SC-112 | HR12-SC-212 | HR12-SC-113 | HR12-SC-111 |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active |
| Type | Signal, Stamped | Signal, Stamped | Signal, Stamped | Signal, Stamped |
| Contact Type | Socket | Socket | Socket | Socket |
| Contact Size | 1.0mm | 1.0mm | 1.0mm | 1.0mm |
| Wire Gauge or Range - AWG | 26-30 AWG | 26-30 AWG | 26-30 AWG | 26-30 AWG |
| Wire Gauge or Range - mm² | - | - | - | - |
| Wire Gauge or Range - Coaxial | - | - | - | - |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Silver | Silver | Tin | Gold |
| Contact Finish Thickness | - | - | - | - |
| Termination Finish | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Features | Insulation Support | - | Insulation Support | Insulation Support |
