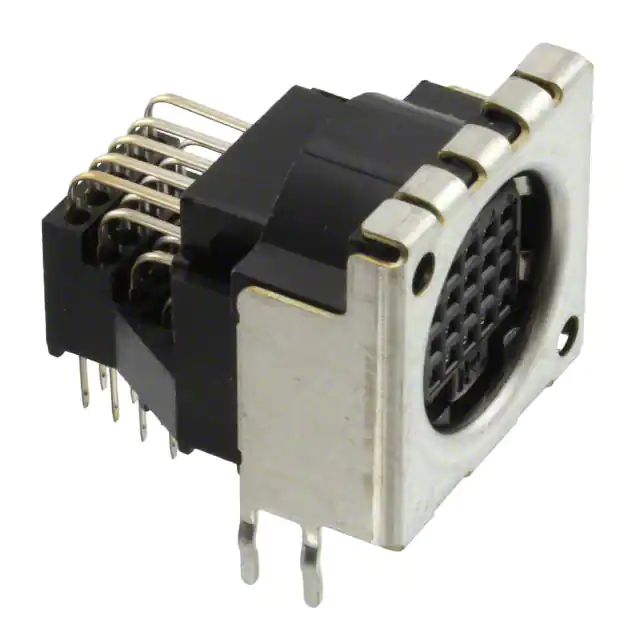

| Part Number | HR12-14R-20SDL | HR12-14RA-20SDL |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 20 | 20 |
| Shell Size - Insert | 14 | 14 |
| Shell Size, MIL | - | - |
| Mounting Type | - | Through Hole, Right Angle |
| Mounting Feature | - | Flange |
| Termination | - | Solder |
| Fastening Type | Snap-In | Snap-In |
| Orientation | Keyed | Keyed |
| Primary Material | - | Plastic |
| Shell Material | - | Polybutylene Terephthalate (PBT) |
| Shell Finish | - | - |
| Contact Finish - Mating | - | Silver |
| Color | - | Black |
| Ingress Protection | - | - |
| Material Flammability Rating | - | UL94 V-0 |
| Features | - | Board Lock, Ground |
| Shielding | Shielded | Shielded |
| Current Rating (Amps) | - | - |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - |
| Operating Temperature | - | -15°C ~ 60°C |
