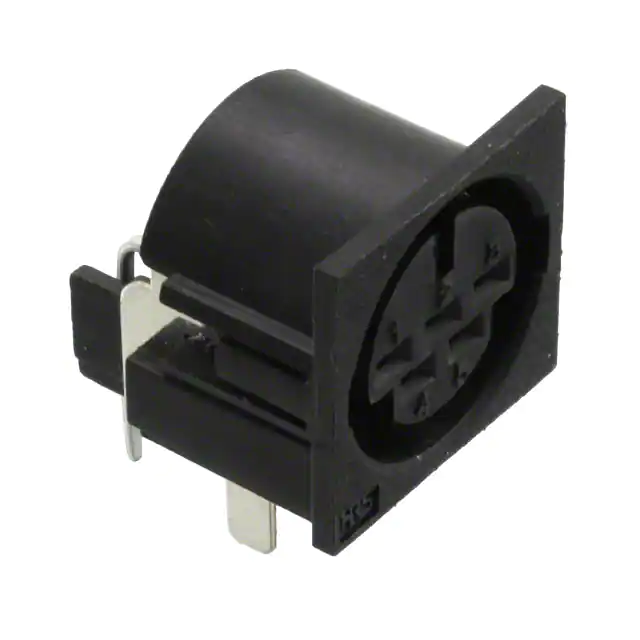

| Part Number | HR12-10R-5SDL(71) | HR12-10R-8SDL(71) | HR212-10R-5SDL(71) | HR12-10R-5SD(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Obsolete | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 5 | 8 | 5 | 5 |
| Shell Size - Insert | 10 | 10 | 10 | 10 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Panel Mount, Through Hole |
| Mounting Feature | Flange | Flange | Flange | Bulkhead - Rear Side Nut |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Snap-In | Snap-In | Snap-In | Snap-In |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Plastic | Plastic | Plastic | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Shell Finish | - | - | Tin | - |
| Contact Finish - Mating | Tin | Tin | Tin | Tin |
| Color | Black | Black | Black, Silver | Black |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Ground | Ground | Ground | Ground |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| Current Rating (Amps) | - | - | - | - |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - | - |
| Operating Temperature | -15°C ~ 60°C | -15°C ~ 60°C | -15°C ~ 60°C | -15°C ~ 60°C |
