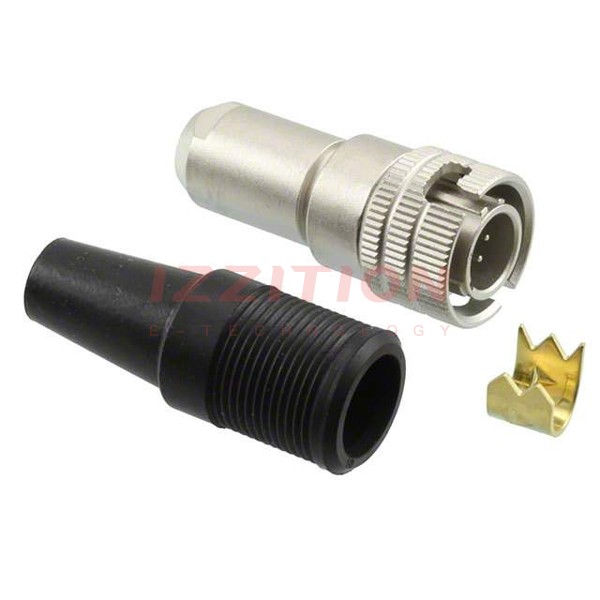

| Part Number | HR11-9BPB-6P(73) | HR11-9BPB-6S(73) | HR11-9BP-6P(73) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy |
| Connector Type | Plug, Male Pins | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 6 | 6 | 6 |
| Shell Size - Insert | 9 | 9 | 9 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver | Silver |
| Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | - | UL94 V-0 |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | 0.177" ~ 0.217" (4.50mm ~ 5.50mm) | - | 0.177" ~ 0.217" (4.50mm ~ 5.50mm) |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C |
