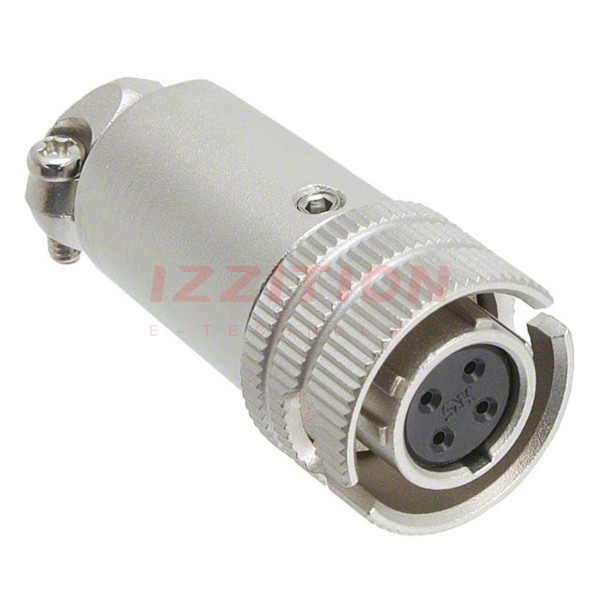

| Part Number | HR11-9BP-4S(73) | HR11-9BR-4S(73) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Last Time Buy |
| Connector Type | Plug, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 4 | 4 |
| Shell Size - Insert | 9 | 9 |
| Shell Size, MIL | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver |
| Color | Silver | Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut | - |
| Shielding | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | 0.177" ~ 0.217" (4.50mm ~ 5.50mm) | - |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C |
