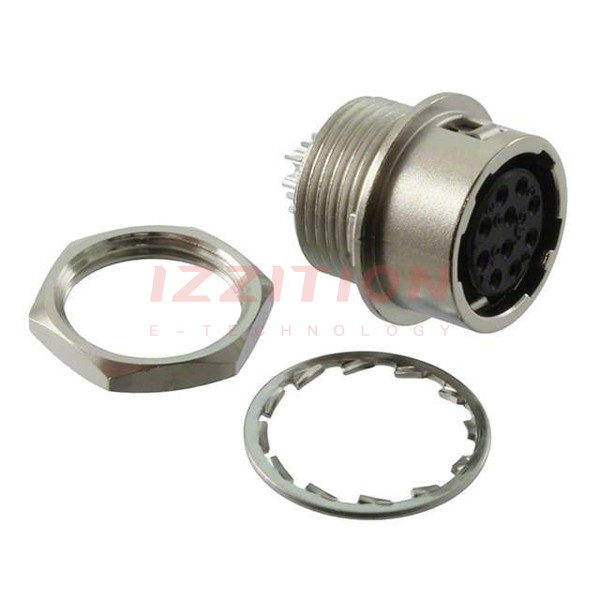

| Part Number | HR10G-10R-10S(71) | HR10G-10R-12S(71) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 10 | 12 |
| Shell Size - Insert | 10 | 10 |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver |
| Color | Silver | Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | - | - |
| Shielding | Shielded | Shielded |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
