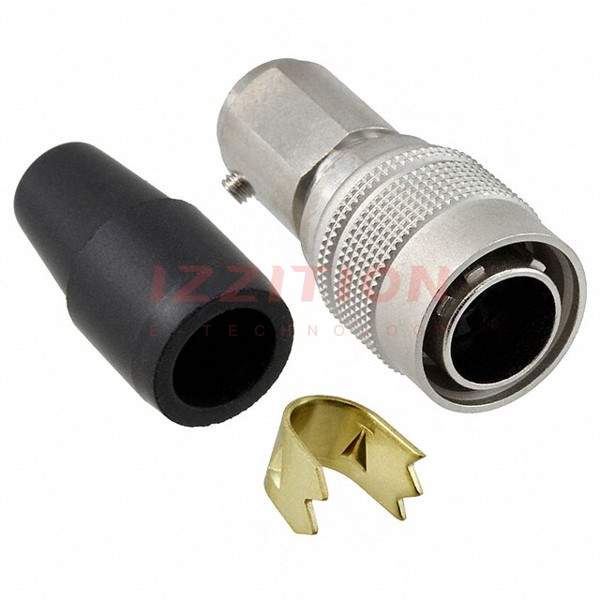

| Part Number | HR10B-10PA-10PC(73) | HR10B-10P-10PC(73) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Last Time Buy |
| Connector Type | Plug Housing | Plug Housing |
| Type | For Male Pins | For Male Pins |
| Number of Positions | 11 (10 + 1 Coax) | 11 (10 + 1 Coax) |
| Shell Size - Insert | 10 | 10 |
| Shell Size, MIL | - | - |
| Contact Type | Crimp | Crimp and Solder |
| Contact Size | - | 1.0mm (10), 1 Coaxial |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Fastening Type | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed |
| Primary Material | - | - |
| Shell Material | Zinc Alloy | Brass |
| Shell Finish | Nickel | Nickel |
| Housing Color | Silver | Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | - | Backshell, Cable Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded | Unshielded |
