HR10A-7R-6P
  • Share:

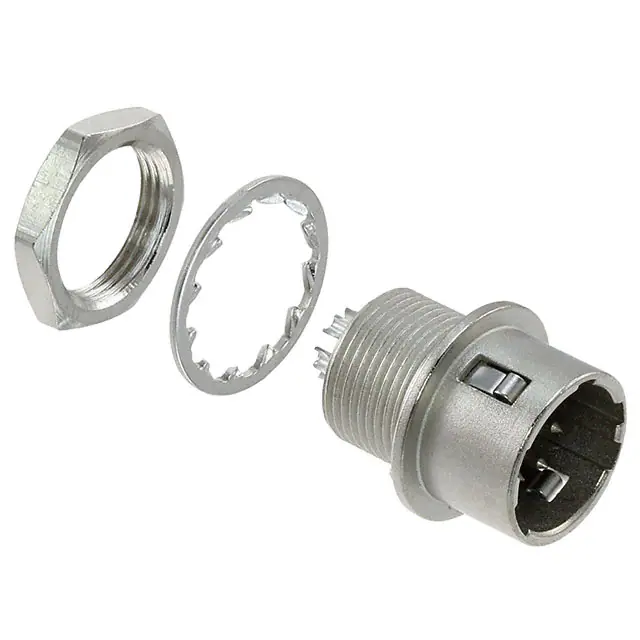

Hirose Electric Co Ltd HR10A-7R-6P

Manufacturer No:
HR10A-7R-6P
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR10A-7R-6P Datasheet
ECAD Model:
-
Description:
CONN RCPT MALE 6POS SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Male Pins
Number of Positions:6
Shell Size - Insert:7
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Bulkhead - Rear Side Nut
Termination:Solder Cup
Fastening Type:Push-Pull
Orientation:Keyed
Primary Material:-
Shell Material:-
Shell Finish:-
Contact Finish - Mating:-
Color:-
Ingress Protection:-
Material Flammability Rating:-
Features:-
Shielding:Unshielded
Current Rating (Amps):2A
Voltage Rating:100VAC, 140VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

-
594

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR10A-7R-6P HR10A-7R-6S   HR10A-7R-6PB   HR10A-7J-6P   HR10A-7P-6P   HR10A-7R-4P   HR10A-7R-5P
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Receptacle, Male Pins Receptacle, Female Sockets Receptacle, Male Pins Jack, Male Pins Plug, Male Pins Receptacle, Male Pins Receptacle, Male Pins
Number of Positions 6 6 6 6 6 4 5
Shell Size - Insert 7 7 7 7 7 7 7
Shell Size, MIL - - - - - - -
Mounting Type Panel Mount Panel Mount Panel Mount, Through Hole Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount Panel Mount
Mounting Feature Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut - - Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut
Termination Solder Cup Solder Cup Solder Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Orientation Keyed Keyed Keyed Keyed Keyed Keyed Keyed
Primary Material - - - - - - -
Shell Material - - - - - - -
Shell Finish - - - - - - -
Contact Finish - Mating - - - - - - -
Color - - - - - - -
Ingress Protection - - - - - - -
Material Flammability Rating - - - - - - -
Features - - - - - - -
Shielding Unshielded Unshielded Unshielded Unshielded Unshielded Unshielded Unshielded
Current Rating (Amps) 2A 2A 2A 2A 2A 2A 2A
Voltage Rating 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 150VAC, 200VDC 100VAC, 140VDC
Cable Opening - - - - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
