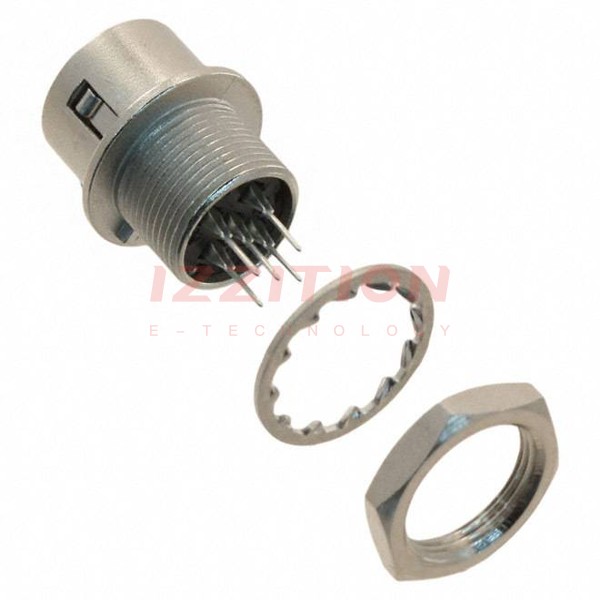

| Part Number | HR10A-7R-5SB | HR10A-7R-6SB | HR10A-7R-4SB | HR10A-7R-5S |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 5 | 6 | 4 | 5 |
| Shell Size - Insert | 7 | 7 | 7 | 7 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder | Solder | Solder | Solder Cup |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - |
| Shell Material | - | - | - | - |
| Shell Finish | - | - | - | - |
| Contact Finish - Mating | - | - | - | - |
| Color | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | - | - | - | - |
| Features | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 150VAC, 200VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
