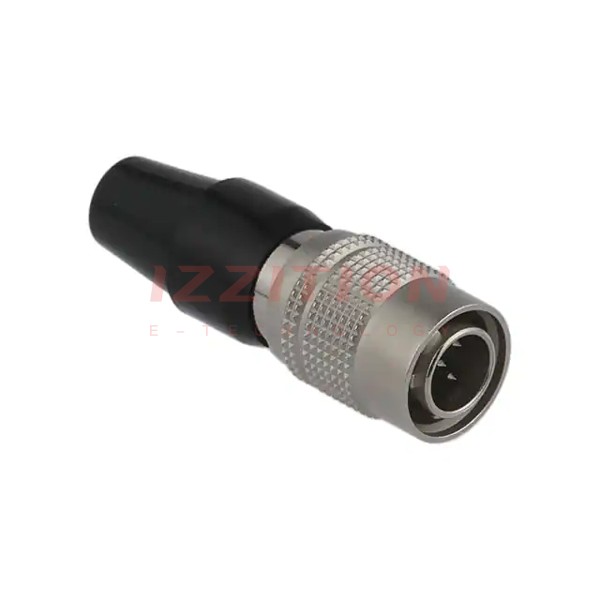

| Part Number | HR10A-7P-5P(73) | HR10A-7P-6P(73) | HR10A-7R-5P(73) | HR10A-7P-5S(73) | HR10A-7P-4P(73) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Receptacle, Male Pins | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 5 | 6 | 5 | 5 | 4 |
| Shell Size - Insert | 7 | 7 | 7 | 7 | 7 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | Bulkhead - Rear Side Nut | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver | Silver | Silver | Silver |
| Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Clamp, Strain Relief | Backshell, Clamp, Strain Relief | - | Backshell, Clamp, Strain Relief | Backshell, Clamp, Strain Relief |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 150VAC, 200VDC |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
