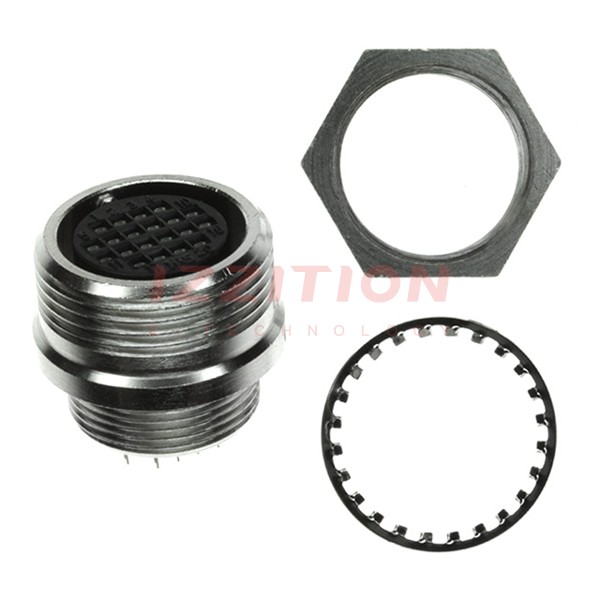

| Part Number | HR10A-13TR-20SB(73) | HR10A-13R-20SB(73) | HR10A-13TR-20PB(73) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Last Time Buy |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 20 | 20 | 20 |
| Shell Size - Insert | 13 | 13 | 13 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder | Solder | Solder |
| Fastening Type | Threaded | Push-Pull | Threaded |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | - |
| Shell Material | Brass | Zinc Alloy | - |
| Shell Finish | Nickel | Nickel | - |
| Contact Finish - Mating | Silver | Silver | - |
| Color | Silver | Silver | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | - |
| Features | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
