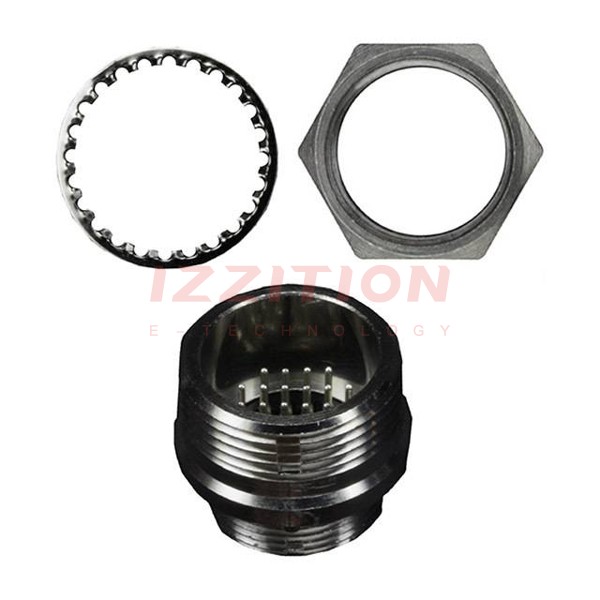

| Part Number | HR10A-13TR-20PB(73) | HR10A-13TR-20SB(73) | HR10A-13R-20PB(73) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 20 | 20 | 20 |
| Shell Size - Insert | 13 | 13 | 13 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder | Solder | Solder |
| Fastening Type | Threaded | Threaded | Push-Pull |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | - | Metal | Metal |
| Shell Material | - | Brass | Zinc Alloy |
| Shell Finish | - | Nickel | Nickel |
| Contact Finish - Mating | - | Silver | Silver |
| Color | - | Silver | Silver |
| Ingress Protection | - | - | - |
| Material Flammability Rating | - | UL94 V-0 | UL94 V-0 |
| Features | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
