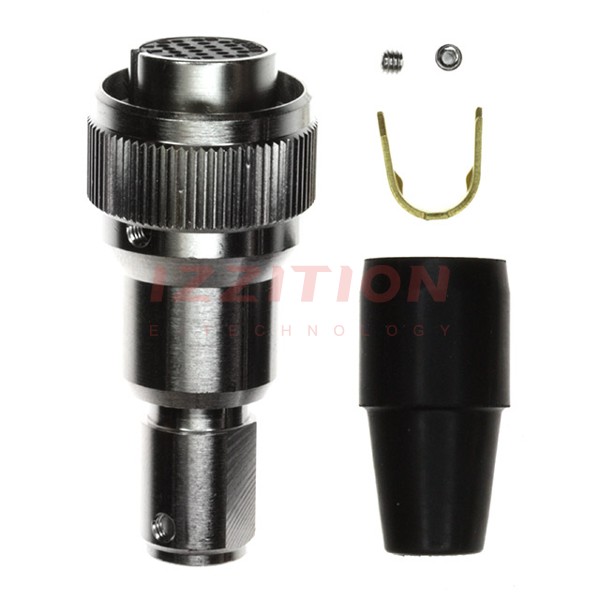

| Part Number | HR10A-13TPD-20S(74) | HR10A-13TPD-20P(74) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active |
| Connector Type | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 20 | 20 |
| Shell Size - Insert | 13 | 13 |
| Shell Size, MIL | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Termination | - | Solder Cup |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | - | Metal |
| Shell Material | - | Brass |
| Shell Finish | - | Nickel |
| Contact Finish - Mating | - | Gold |
| Color | - | Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | - | UL94 V-0 |
| Features | - | Backshell, Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
