HR10A-13R-20PB(73)
  • Share:

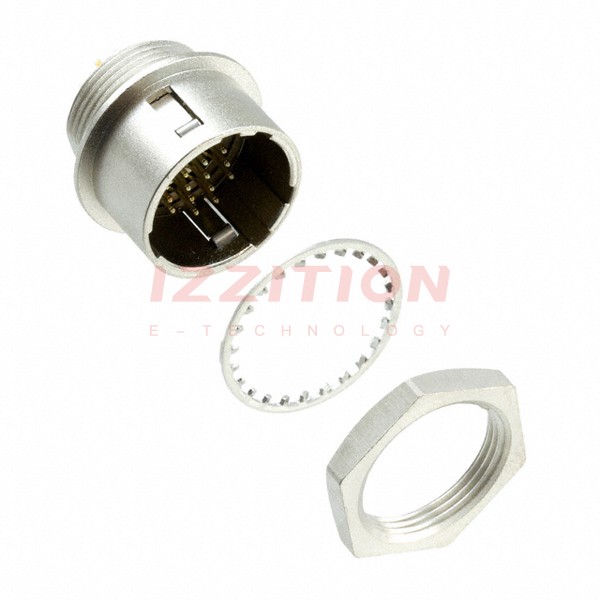

Hirose Electric Co Ltd HR10A-13R-20PB(73)

Manufacturer No:
HR10A-13R-20PB(73)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HR10A-13R-20PB(73) Datasheet
ECAD Model:
-
Description:
CONN RCPT MALE 20P SILVER SOLDER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Male Pins
Number of Positions:20
Shell Size - Insert:13
Shell Size, MIL:-
Mounting Type:Panel Mount, Through Hole
Mounting Feature:Bulkhead - Rear Side Nut
Termination:Solder
Fastening Type:Push-Pull
Orientation:Keyed
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Nickel
Contact Finish - Mating:Silver
Color:Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:-
Shielding:Unshielded
Current Rating (Amps):2A
Voltage Rating:100VAC, 140VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$26.42
4

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR10A-13R-20PB(73) HR10A-13R-20SB(73)   HR10A-13TR-20PB(73)   HR10A-13R-20P(73)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Last Time Buy Active
Connector Type Receptacle, Male Pins Receptacle, Female Sockets Receptacle, Male Pins Receptacle, Male Pins
Number of Positions 20 20 20 20
Shell Size - Insert 13 13 13 13
Shell Size, MIL - - - -
Mounting Type Panel Mount, Through Hole Panel Mount, Through Hole Panel Mount, Through Hole Panel Mount
Mounting Feature Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut
Termination Solder Solder Solder Solder Cup
Fastening Type Push-Pull Push-Pull Threaded Push-Pull
Orientation Keyed Keyed Keyed Keyed
Primary Material Metal Metal - Metal
Shell Material Zinc Alloy Zinc Alloy - Zinc Alloy
Shell Finish Nickel Nickel - Nickel
Contact Finish - Mating Silver Silver - Silver
Color Silver Silver - Silver
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 - UL94 V-0
Features - - - -
Shielding Unshielded Unshielded Unshielded Unshielded
Current Rating (Amps) 2A 2A 2A 2A
Voltage Rating 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC
Cable Opening - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
