HR10A-13P-20S(74)
  • Share:

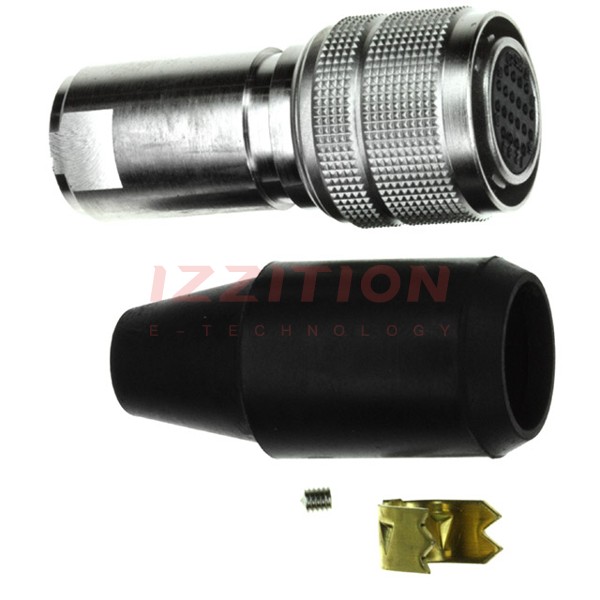

Hirose Electric Co Ltd HR10A-13P-20S(74)

Manufacturer No:
HR10A-13P-20S(74)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR10A-13P-20S(74) Datasheet
ECAD Model:
-
Description:
CONN PLUG FMALE 20P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Female Sockets
Number of Positions:20
Shell Size - Insert:13
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Push-Pull
Orientation:Keyed
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:Backshell, Clamp, Strain Relief
Shielding:Unshielded
Current Rating (Amps):2A
Voltage Rating:100VAC, 140VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$57.18
5

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR10A-13P-20S(74) HR10A-13R-20S(74)   HR10A-13P-20P(74)   HR10A-13P-20S(73)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active
Connector Type Plug, Female Sockets Receptacle, Female Sockets Plug, Male Pins Plug, Female Sockets
Number of Positions 20 20 20 20
Shell Size - Insert 13 13 13 13
Shell Size, MIL - - - -
Mounting Type Free Hanging (In-Line) Panel Mount Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - Bulkhead - Rear Side Nut - -
Termination Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull
Orientation Keyed Keyed Keyed Keyed
Primary Material Metal Metal Metal Metal
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel
Contact Finish - Mating Gold Gold Gold Silver
Color Silver Silver Silver Silver
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Clamp, Strain Relief - Backshell, Clamp, Strain Relief Backshell, Clamp, Strain Relief
Shielding Unshielded Unshielded Unshielded Unshielded
Current Rating (Amps) 2A 2A 2A 2A
Voltage Rating 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC
Cable Opening - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
