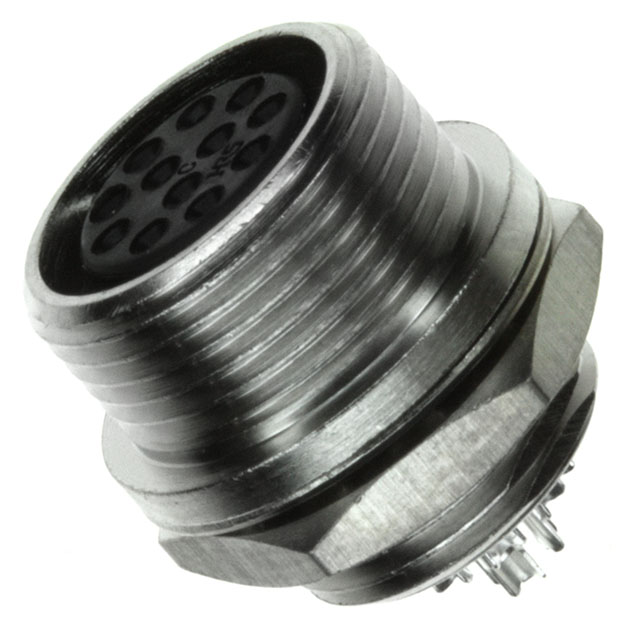

| Part Number | HR10A-10WTR-12S(73) | HR10A-10WTR-12SB(73) | HR10A-10TR-12S(73) | HR10A-10WTJ-12S(73) | HR10A-10WTP-12S(73) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Jack, Female Sockets | Plug, Female Sockets |
| Number of Positions | 12 | 12 | 12 | 12 | 12 |
| Shell Size - Insert | 10 | 10 | 10 | 10 | 10 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount, Through Hole | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | - | - |
| Termination | Solder Cup | Solder | Solder Cup | Solder Cup | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | - |
| Shell Material | Brass | Brass | Brass | Brass | - |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | - |
| Contact Finish - Mating | Silver | Silver | Silver | Silver | - |
| Color | Silver | Silver | Silver | Silver | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | - | IP67 - Dust Tight, Waterproof | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | - |
| Features | - | - | - | Backshell, Clamp, Strain Relief | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
