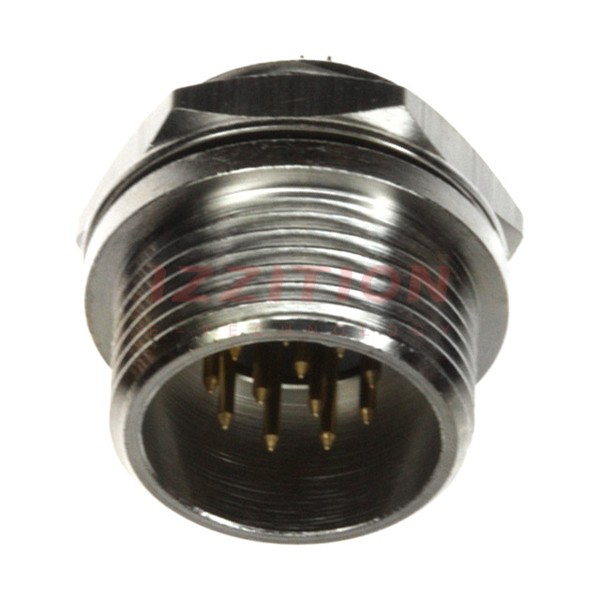

| Part Number | HR10A-10WTR-12P(74) | HR10A-10WTP-12P(74) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Last Time Buy |
| Connector Type | Receptacle, Male Pins | Plug, Male Pins |
| Number of Positions | 12 | 12 |
| Shell Size - Insert | 10 | 10 |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Bulkhead - Rear Side Nut | - |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | - | Metal |
| Shell Material | - | Brass |
| Shell Finish | - | Nickel |
| Contact Finish - Mating | - | Gold |
| Color | - | Silver |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | UL94 V-0 |
| Features | - | Backshell, Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
