HR10A-10WTP-12P(74)
  • Share:

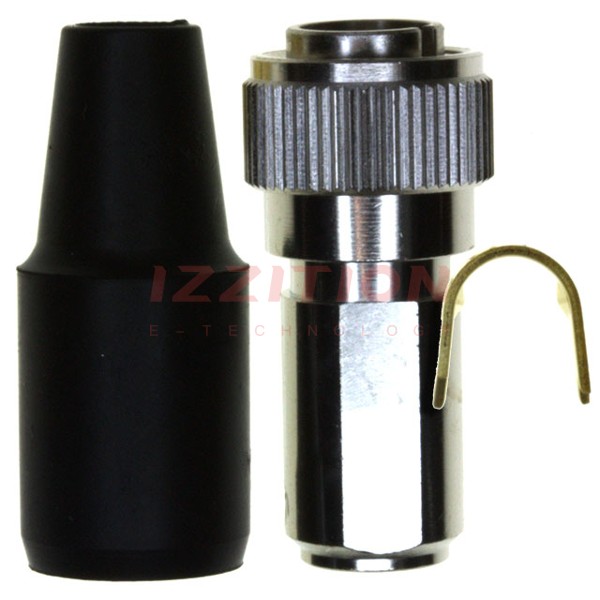

Hirose Electric Co Ltd HR10A-10WTP-12P(74)

Manufacturer No:
HR10A-10WTP-12P(74)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR10A-10WTP-12P(74) Datasheet
ECAD Model:
-
Description:
CONN PLUG MALE 12P GOLD SLDR CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Male Pins
Number of Positions:12
Shell Size - Insert:10
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Brass
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell, Clamp, Coupling Nut, Strain Relief
Shielding:Unshielded
Current Rating (Amps):2A
Voltage Rating:100VAC, 140VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

-
586

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR10A-10WTP-12P(74) HR10A-10WTP-12S(74)   HR10A-10WTR-12P(74)   HR10A-10WTP-12P(73)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Last Time Buy Obsolete Last Time Buy Active
Connector Type Plug, Male Pins Plug, Female Sockets Receptacle, Male Pins Plug, Male Pins
Number of Positions 12 12 12 12
Shell Size - Insert 10 10 10 10
Shell Size, MIL - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount Free Hanging (In-Line)
Mounting Feature - - Bulkhead - Rear Side Nut -
Termination Solder Cup - Solder Cup Solder Cup
Fastening Type Threaded Threaded Threaded Threaded
Orientation Keyed Keyed Keyed Keyed
Primary Material Metal - - Metal
Shell Material Brass - - Brass
Shell Finish Nickel - - Nickel
Contact Finish - Mating Gold - - Silver
Color Silver - - Silver
Ingress Protection IP67 - Dust Tight, Waterproof - - IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 - - UL94 V-0
Features Backshell, Clamp, Coupling Nut, Strain Relief - - Backshell, Clamp, Coupling Nut, Strain Relief
Shielding Unshielded Unshielded Unshielded Unshielded
Current Rating (Amps) 2A 2A 2A 2A
Voltage Rating 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC
Cable Opening - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
